Description

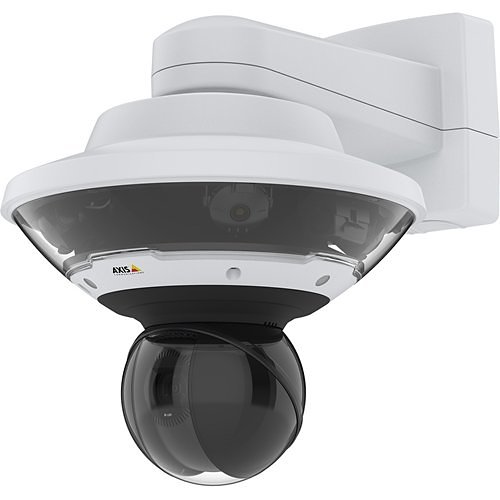

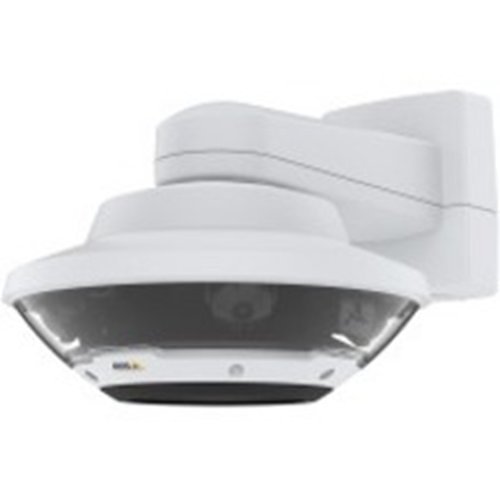

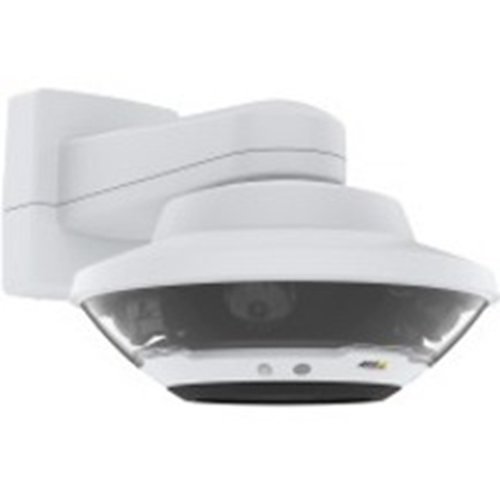

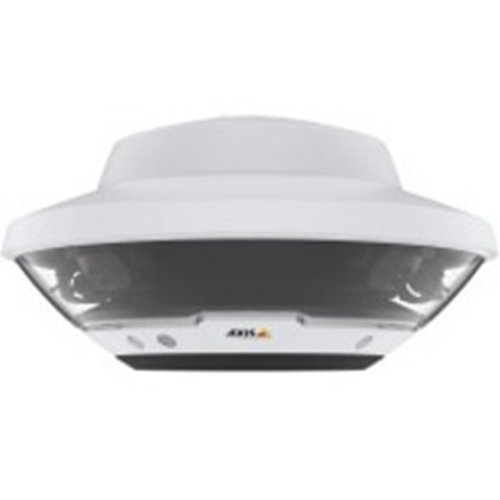

Featuring four 5 MP sensors, the AXIS Q6100-E offers a comprehensive 360° field of view, delivering high-quality image performance in both day and night conditions. Integrating seamlessly with any camera from the AXIS Q61 Series, it provides one-click pan-tilt-zoom (PTZ) control and incorporates autopilot functionality for automatic PTZ tracking within defined areas. The device includes directional audio detection, allowing the PTZ camera to focus on sound sources triggered by audio events. Each sensor comes with exchangeable and tiltable lenses equipped with autofocus, ensuring maximum versatility and precise setup. Installation is streamlined, using the same bracket, power supply, and network cable as the connected AXIS Q61 Series camera, offering a cost-effective solution.

  • 360° coverage with one-click PTZ capability
  • Four 5 MP sensors for a total of 20 MP resolution
  • Interchangeable and adjustable lenses
  • Requires an AXIS Q61 Series camera for operation
  • Includes directional audio detection feature
Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature165.2°F (74°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/20 Second
Shortest Shutter Speed1/32500 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number01711-001
Product LineQ
Product ModelQ6100-E
Product NameQ6100-E Network Camera
Product SeriesQ61
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesAudio Detection, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor
Package Contents Q6100-E Network Camera Q61-E Ddapter Bayonet Screws Installation Guide Windows Decoder 1-User License

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height7.6"
Weight (Approximate)8.82 lb

Product Information
Diameter14.2"
Mount TypeCeiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal field of view: 360° Vertical field of view: 84°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate20 fps
Minimum Focal Length2.8 mm

Warranty
Limited Warranty5 Years
