Description

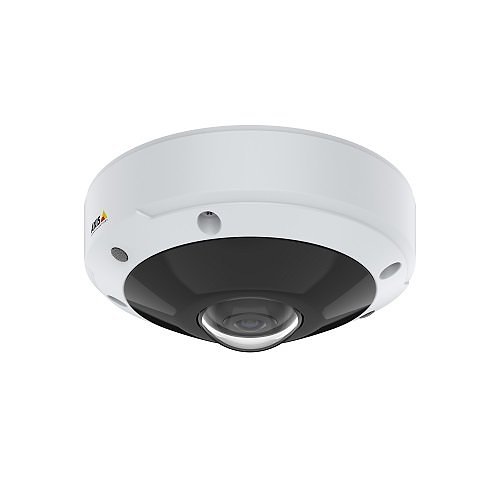

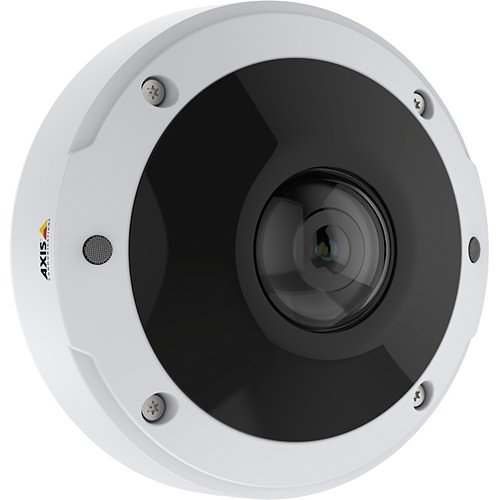

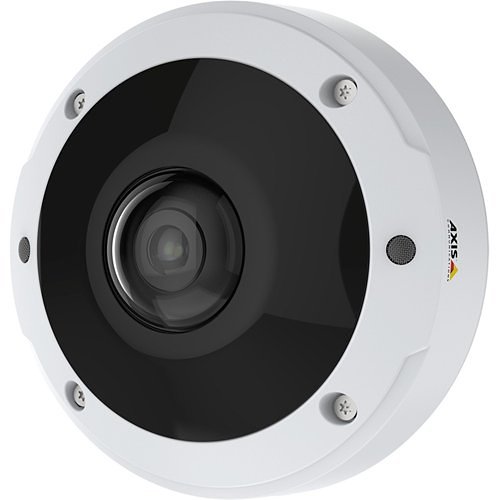

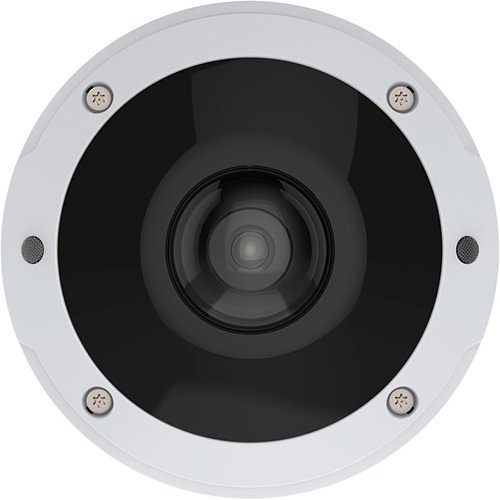

**6 MP Outdoor-Ready Camera with 360° Panoramic Imaging and Audio Capture:**

Featuring a robust 6 MP sensor, this surveillance camera delivers superior image quality with a full 180° or 360° field of view, suitable for both indoor and outdoor environments, and operates effectively around the clock. The device comes equipped with dual integrated microphones, enabling comprehensive audio surveillance and detection. This compact mini dome offers versatile viewing modes, including panorama, quad, corner, and corridor views, directly from the camera. Enhanced with advanced technologies such as Lightfinder and Forensic WDR, it ensures accurate color representation and exceptional detail in challenging lighting conditions or near darkness. Additionally, its OptimizedIR technology facilitates effective surveillance in complete darkness.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1920

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/16000 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02018-001
Product LineM
Product ModelM3077
Product NameM3077-PLVE Network Camera
Product SeriesM30
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.55 mm
Lens IncludedYes
Maximum Focal Length1.56 mm

Miscellaneous
FeaturesAudio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Video Management System, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package ContentsM3077-PLVE Network CameraInstallation GuideWindows Decoder 1-user licenseDrill Hole TemplateCable GasketsConnector GuardI/O ConnectorRESISTORX TR20 bitand more below, Cable Hole Lid, Mounting Bracket, View Protector

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-0548001
Model Number Replaces0548-001

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height2.6"
Product ColorWhite
Weight (Approximate)1.54 lb

Product Information
Diameter5.9"
Mount TypeCeiling Mount, Conduit Mount, Corner Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewHorizontal field of view: 183° Vertical field of view: 183°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate60 fps
Minimum Focal Length1.56 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Years
