Description

This dual-sensor, multidirectional camera delivers outstanding image quality even in challenging lighting conditions. Leveraging ARTPEC-8 technology, it supports advanced edge-based analytics powered by deep learning.

Comprehensive Surveillance – Anytime

Featuring 360° infrared illumination and independently controllable LEDs, this camera ensures clear visibility in low light or total darkness and provides accurate color representation during daylight hours. With AXIS Lightfinder, you achieve color recording even in near darkness, while Forensic WDR maintains clarity in high-contrast scenes. Equipped with two 2 MP channels at 30 fps, it captures wide-angle and detailed zoomed-in views. The 2.5x zoom capability delivers expansive views with precise detail, and audio input allows for monitoring of transactions or incidents.

Innovative Design

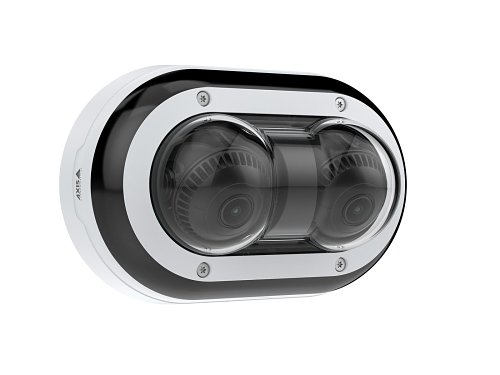

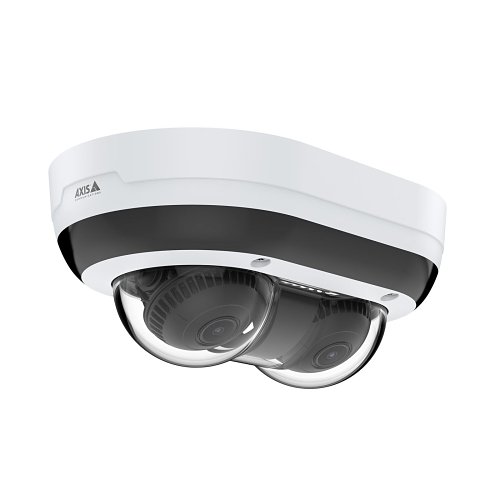

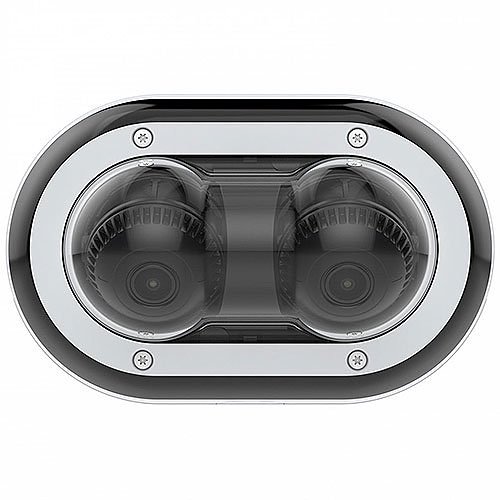

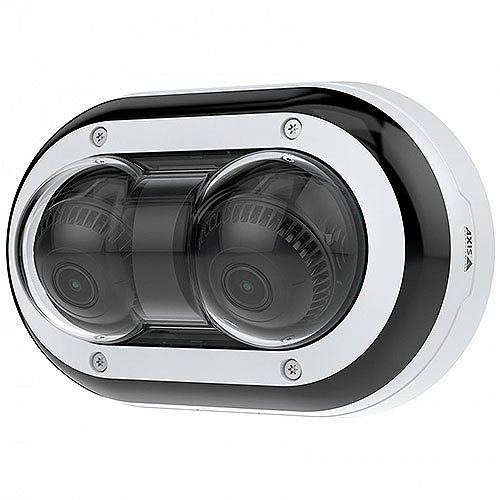

This compact, multidirectional security camera is ideal for dual-direction surveillance. Offering versatile positioning, each varifocal camera head can be independently controlled for monitoring in wide or zoomed views. The sensors can be adjusted to position the camera heads closer together, making it perfect for straight corridors or corner intersections, providing simultaneous dual-direction viewing.

Advanced Deep Learning Capabilities

Built on the ARTPEC-8 platform, this high-performance camera incorporates a deep learning processing unit (DLPU) for enhanced data processing and storage directly at the edge. This feature enhances the capability to analyze more data, providing valuable metadata that facilitates efficient forensic searches in both live and recorded video. With AXIS Object Analytics, the camera classifies humans, vehicles, and specific vehicle types to meet tailored requirements. Support for ACAP version 4 further enhances system value with bespoke applications using edge-based deep learning.

Cost-Effective Setup

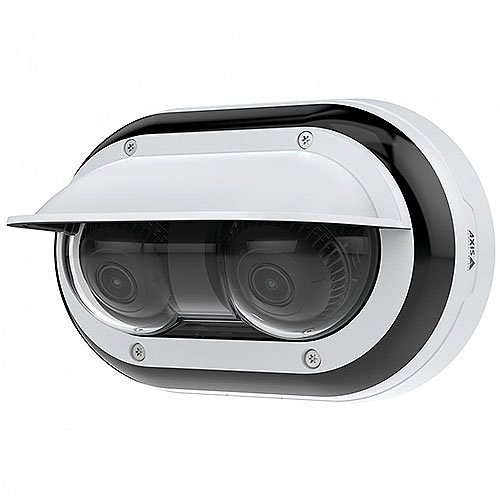

With its dual camera head configuration, this camera provides cost-efficient installation options, requiring only one camera, one cable, one IP address, and one VMS license, alongside any analytics license needed. Optional IP66/IP67-rated weather protection makes this high-performance camera suitable for outdoor wall installation. It features edge storage for enhanced storage capacity and reliability, and remote zoom and focus capabilities reduce the need for manual adjustments, ensuring quick and precise installation. Additionally, Zipstream with H.264/H.265 encoding minimizes bandwidth and storage needs.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080
Number of Sensors2

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1.5 Second
Shortest Shutter Speed1/20000 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02415-001
Product LineP
Product ModelP4705-PLVE
Product NameAXIS P4705-PLVE Panoramic Camera
Product SeriesP47
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.26-8.12 mm
Lens IncludedYes
Maximum Focal Length8.12 mm
Minimum Aperturef/3.2

Miscellaneous
FeaturesDay/Night, HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01970001
Model Number Replaces01970-001P3715-PLVE

Physical Characteristics
ColorWhite
Color FamilyDual Color
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorPanoramic
Height3.5"
Product ColorBlack, White
Weight (Approximate)2.15 lb
Width5.2"

Product Information
Length8.2"
Mount TypeCeiling Mount, Conduit Mount, Gang Box Mount, Junction Box Mount, Tripod Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 107°-39° Vertical field of view: 55°-22° Diagonal field of view: 131°-45°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.9
Maximum Frame Rate60 fps
Minimum Focal Length3.26 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom2.5x

Warranty
Limited Warranty5 Year
