Description

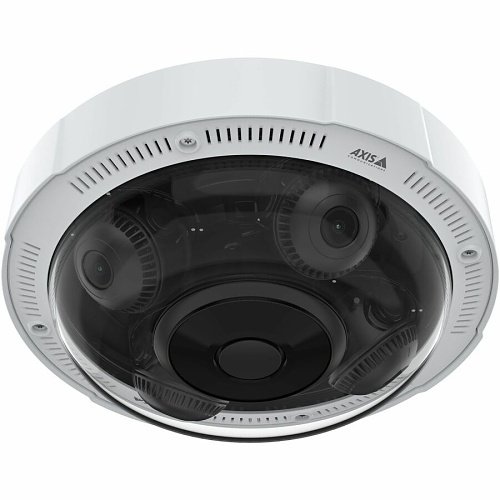

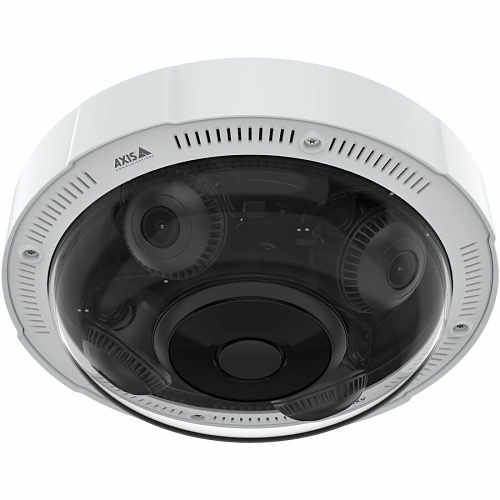

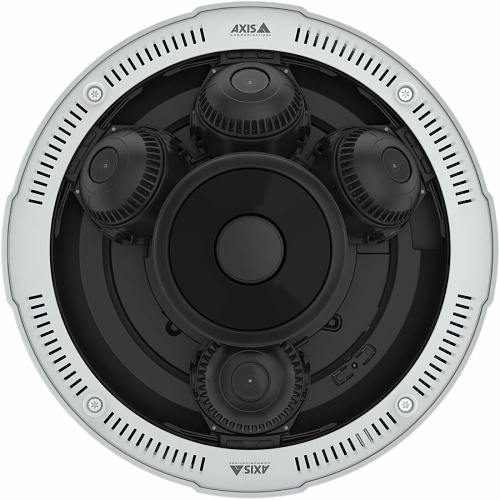

The AXIS P3737-PLE is a cutting-edge surveillance solution that provides four 5 MP channels at 20 fps, enabling both wide-angle and detailed zoom-in views. It is equipped with day/night functionality and 360° IR illumination, featuring independently controllable LEDs and a removable IR cut filter for superior image clarity without reflections, even in low light or total darkness. The camera’s Forensic WDR technology ensures optimal image quality in scenes with both bright and dark regions. Additionally, metadata processing and AXIS Object Analytics are supported across multiple channels, allowing for the detection and classification of individuals and vehicles entering a defined area. This surveillance camera also features object counting capabilities within chosen zones and can trigger alarms when predetermined thresholds are surpassed.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature50 deg C
Minimum Operating Temperature-30 deg C
Operating Humidity100%

Exposure
Longest Shutter Speed1.5 Second
Shortest Shutter Speed1/28000 Second

General Information
Brand NameAxis Communications
Edge EnabledYes
ManufacturerAxis Communications
Manufacturer Part Number02634-001
Product LineP
Product ModelP3737-PLE
Product NameAXIS P3737-PLE Panoramic Camera
Product SeriesP37
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.18-8.12 mm
Lens IncludedYes
Maximum Focal Length8.10 mm
Minimum Aperturef/3.2

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics
Impact Protection RatingIK09
Package Contents P3737-PLE Panoramic Camera installation guide connector guard cable gaskets

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01500001
Model Number Replaces01500-001

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Tamper Resistant, Waterproof
Product ColorWhite
Weight (Approximate)4.41 lb

Storage
Recording Formats2K
Storage TypeMemory Card/Cloud

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal field of view: 99°-37° Vertical field of view: 70°-28° Diagonal field of view: 134°-47°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.9-3.2
Maximum Frame Rate30 fps
Minimum Focal Length3.20 mm
Optical Zoom2.5x

Warranty
Limited Warranty5 Year
