Description

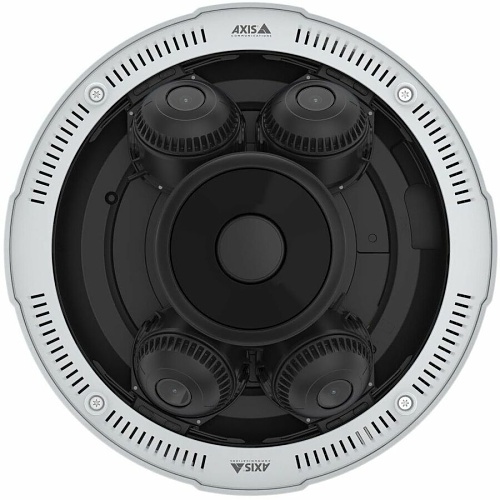

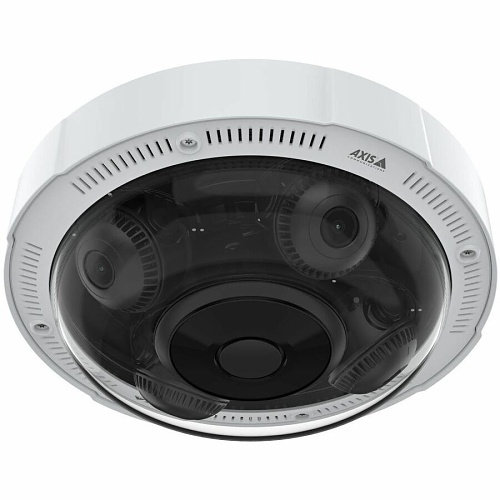

The AXIS P3738-PLE surveillance camera offers four 4K channels at 15 frames per second, allowing for simultaneous wide-angle and detailed, zoomed-in views. Featuring day/night functionality and 360° infrared illumination, it offers individually controllable LEDs and a removable IR cut filter, ensuring clear, reflection-free footage and superior image quality in both low light and complete darkness. Its Forensic Wide Dynamic Range (WDR) technology maintains image clarity across scenes with varying lighting conditions. Additionally, the camera supports metadata management and AXIS Object Analytics on multiple channels, enabling the detection and classification of people and vehicles entering defined areas. This functionality allows for object counting in designated zones and triggers alarms when predefined thresholds are surpassed.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Illumination0 lux
Maximum Video Resolution3840 x 2160
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature50 deg C
Minimum Operating Temperature-30 deg C
Operating Humidity100%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/16000 Second

General Information
Brand NameAxis Communications
Edge EnabledYes
ManufacturerAxis Communications
Manufacturer Part Number02635-001
Product LineP
Product ModelP3738-PLE
Product NameAXIS P3738-PLE Panoramic Camera
Product SeriesP37
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.18-8.12 mm
Lens IncludedYes
Maximum Focal Length8.10 mm
Minimum Aperturef/3.2

Miscellaneous
Features360 deg IR illumination with individually controlled LEDs, 4 x 4 K at 15 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics
Impact Protection RatingIK09
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01500001
Model Number Replaces01500-001

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height3.6"
Product ColorWhite
Weight (Approximate)4.41 lb

Product Information
Diameter10"
Mount TypeBracket Mount, Conduit Mount, Junction Box Mount

Storage
Recording Formats4K
Storage TypeMemory Card/Cloud

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal field of view: 108°-40°, Vertical field of view: 55°-23°, Diagonal field of view: 131°-46°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.9-3.2
Maximum Frame Rate15 fps
Minimum Focal Length3.20 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom2.5x
