Description

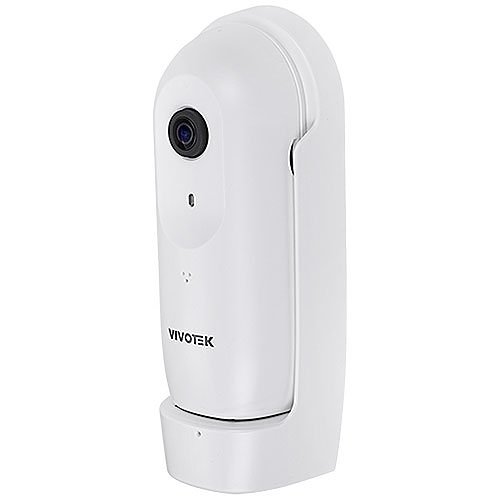

VIVOTEK’s CC9160-H stands out as a low-profile network camera tailored for comprehensive 180° panoramic indoor surveillance. Its discreet design makes it an ideal solution for retail environments, convenience stores, hotels, classrooms, and cafes. Featuring 120 dB WDR Pro technology, it excels in high-contrast lighting conditions, delivering exceptional 180° panoramic views in 1080P for superior situational awareness. The innovative mounting design ensures quick and straightforward installation on any wall, while the integrated microphone enhances surveillance by capturing audio within a 5-meter range. Additionally, digital input and output connections bolster the CC9160-H’s security functionality.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature113°F (45°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberCC9160-H
Product ModelCC9160-H
Product NameCC9160-H Network Camera
Product SeriesC
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.66 mm
Lens IncludedYes
Maximum Focal Length1.66 mm

Miscellaneous
Features3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Built-in Microphone, Defog, Gain Control, Highlight Compensation (HLC), Mirror, Privacy Masking, Smart Stream, White Balance, Wide Dynamic Range
Indoor/OutdoorIndoor
Package Contents CC9160-H Network Camera Quick installation guide Mounting bracket Tilt bracket Screw pack

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-CC8160
Model Number ReplacesCC8160

Physical Characteristics
ColorWhite
Depth1.5"
Form FactorPanoramic
Height4.7"
Weight (Approximate)2.86 oz
Width2"

Product Information
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View180°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.95
Maximum Frame Rate30 fps
Minimum Focal Length1.66 mm
