Description

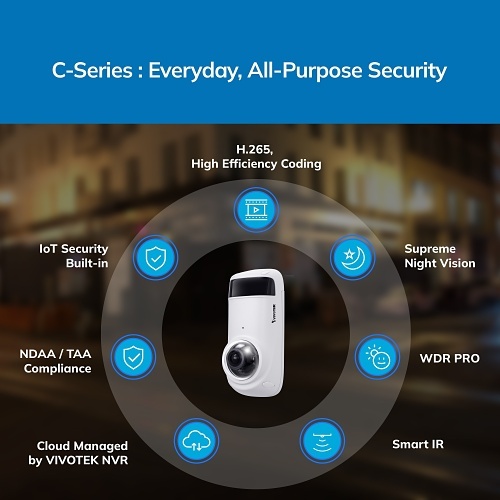

**Advanced Surveillance Solutions**
Experience expansive coverage with the CC9381-HV, delivering exceptional 180° horizontal field of view. This panoramic network camera provides up to 20 fps at 5-megapixel resolution (30 fps at 5MP without Wide Dynamic Range). It incorporates essential features such as WDR Pro for handling challenging lighting conditions and integrated 15-meter panoramic IR illuminators, ensuring 24/7 surveillance.

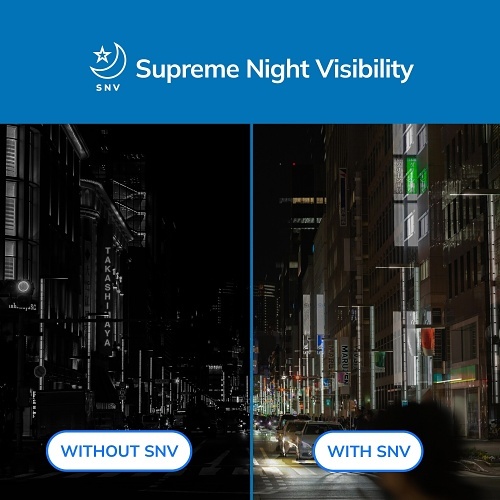

**Clear 180° Night Vision**
Equipped with 180° IR illuminators reaching up to 15 meters, the CC9381-HV guarantees comprehensive video security, day or night, regardless of lighting conditions.

**Enhanced Video Quality with Minimal Bandwidth**
By utilizing both H.265 and VIVOTEK Smart Stream III technologies, the CC9381-HV significantly reduces bandwidth and storage requirements, achieving over 90% efficiency compared to traditional H.264 systems without smart streaming.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Operating Humidity0.9

Exposure
Longest Shutter Speed1/5 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberCC9381-HV
Product ModelCC9381-HV
Product Name180° Panoramic Network Camera
Product SeriesC
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.4 mm
Lens IncludedYes
Maximum Focal Length1.45 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents 180° Panoramic Network Camera Quick Installation Guide Warranty Card Mounting Bracket Tilt Bracket Screw Pack

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-CC8371HV
Model Number ReplacesCC8371-HV

Physical Characteristics
ColorWhite
Depth2.4"
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFisheye
Height6.3"
Weight (Approximate)1.08 lb
Width2.8"

Product Information
Length2.4"
Mount TypeBracket Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View180°
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate30 fps
Minimum Focal Length1.45 mm
Night VisionYes

Warranty
Limited Warranty2 Year
