Description

The WizMind Series delivers cutting-edge analytics with a focus on human-centered solutions, catering to complex security applications that demand advanced surveillance capabilities.

**System Overview**

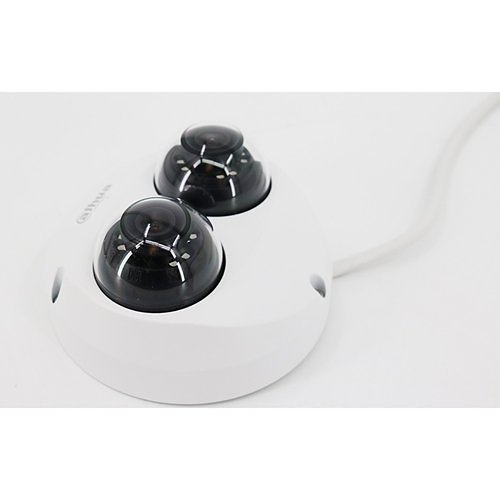

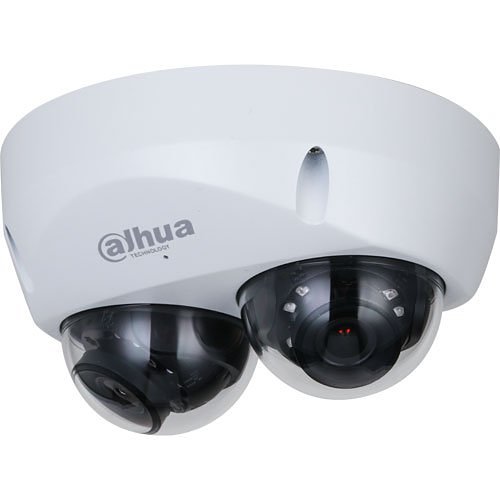

The 2 x 4 MP Dual-sensor Dome Camera features sophisticated analytics and starlight technology for an all-encompassing surveillance solution. Each sensor can be independently adjusted, enabling versatile, multi-directional monitoring perfect for covering an entire corridor, stairwell, or street. Analytics+ can be applied to each channel, working concurrently. The camera is equipped with True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67-rated ingress protection, and operates effectively in extreme temperatures, ensuring superior image quality under varying lighting and environmental conditions.

**Functions**

**Perimeter Protection**
Enhanced Analytics+ includes Tripwire and Intrusion detection with customizable tripwire settings based on object type, improving automation for restricted areas. This perimeter protection technology requires fewer pixels to detect objects, offering heightened accuracy and fewer false alarms caused by environmental factors like lighting, weather, or animals.

**People Counting**
The camera utilizes advanced real-time algorithms for people counting, providing precise flow statistics with two distinct functions: Line Crossing and Regional Counting. The Line Crossing function tallies individuals crossing a specified line, while the Regional function counts people within a user-defined area.

**Starlight Technology**
For applications with challenging low-light conditions, Enhanced Starlight Technology delivers exceptional sensitivity, capturing details at light levels as low as 0.005 lux. Its optical features optimize light distribution within the scene, ensuring clear imagery in darker settings.

**ArcticPro Technology**
The ArcticPro Series of extreme-environment cameras are built with temperature-resistant components housed in a waterproof enclosure, ensuring reliable operation in temperatures as low as -40°F (-40°C) without requiring an internal heater. The absence of a heater reduces power consumption, cutting operational costs and meeting high-resolution video demands in extremely cold climates.

**AI Coding**
AI Coding prioritizes recording of human or vehicular objects in video scenes. Utilizing a constant bit rate (CBR), it dynamically increases bit rate allocation for target objects while decreasing it for background entities. This approach reduces bit rate and storage needs by up to 25% compared to the H.265 video compression standard.

Camera
Image Sensor TypeCMOS
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440
Number of Sensors2

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberDH-IPC-HDBW5441FN-AS-E2
Product LineWizMind
Product ModelDH-IPC-HDBW5441FN-AS-E2
Product Name2x4MP IR Dual-sensor Starlight Dome Network Camera
Product SeriesPro
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Country of OriginCN
Features3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Defog, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-HDBW4231N
Model Number ReplacesDH-IPC-HDBW4231FN-E2-M

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height2.6"
Weight (Approximate)1.15 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.8"
Mount TypeCorner Mount, Junction Box Mount, Pole Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal: 95° Vertical: 52° Diagonal: 114°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs16
Video FormatsH.264, H.265, MJPEG

Warranty
Limited Warranty5 Year
