Description

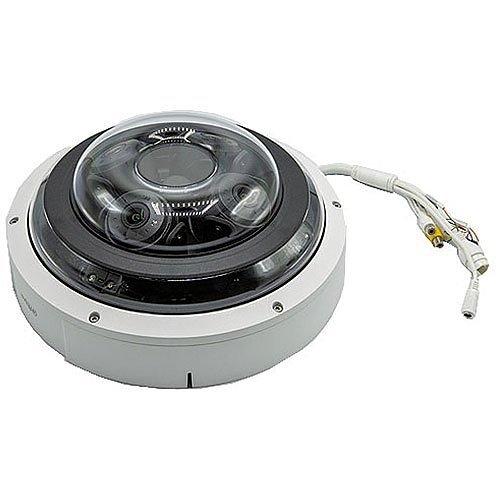

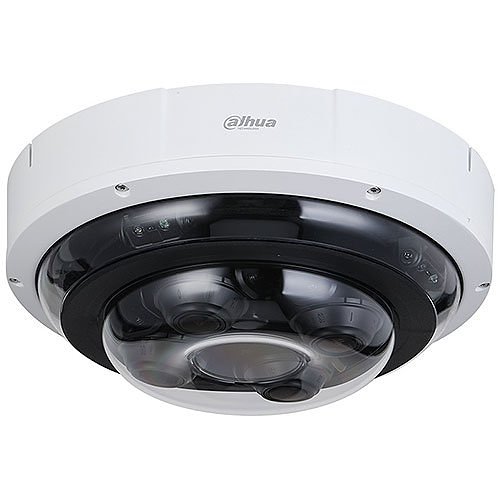

The Dahua DH-IPC-PDBW82041-B360-S2 Flexible Multi-sensor Dome Camera integrates four (4) 1/2.7-inch 5 MP Progressive-scan CMOS sensors, each equipped with a motorized 2.8 to 12 mm lens. These sensors can be independently positioned and configured to provide versatile, multi-directional video surveillance, effectively replacing multiple single-sensor cameras, making it ideal for covering expansive areas. Featuring a True Day/Night IR Cut filter, IP67-rated ingress protection, and the ability to operate in extreme temperatures, this camera ensures exceptional image quality in diverse lighting and environmental conditions.

Camera
Image Sensor TypeCMOS
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberDH-IPC-PDBW82041-B360-S2
Product LineWizMind
Product ModelIPC-PDBW82041-B360-S2
Product Name4 x 5MP Flexible Multi-sensor Network Camera
Product SeriesUltra
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Audio Compression, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Face Detection, Highlight Compensation (HLC), Mirror, Motion Detection, Privacy Masking, White Balance
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-PDW8241B6
Model Number ReplacesDH-IPC-PDBW82041N-B360

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Weight (Approximate)6.06 lb

Power Description
Input Voltage12V DC

Product Information
Diameter11.3"
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 100°-42°; V: 74°-32°; D: 133°-53°
HD RecordingYes
Lens Mount TypeM14 Mount
Lens TypeVarifocal
Maximum Aperturef/1.7
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs8
Optical Zoom4.3x
Video FormatsH.264, H.265, MJPEG
