Description

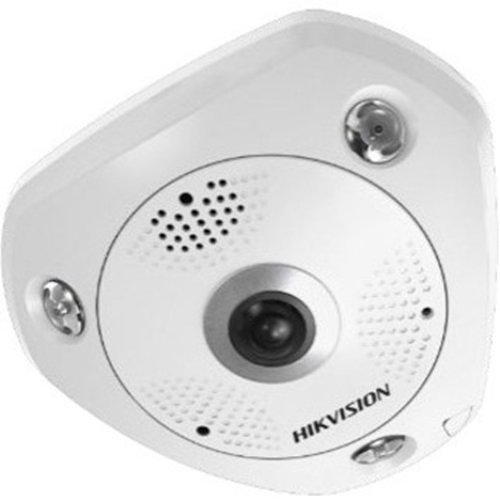

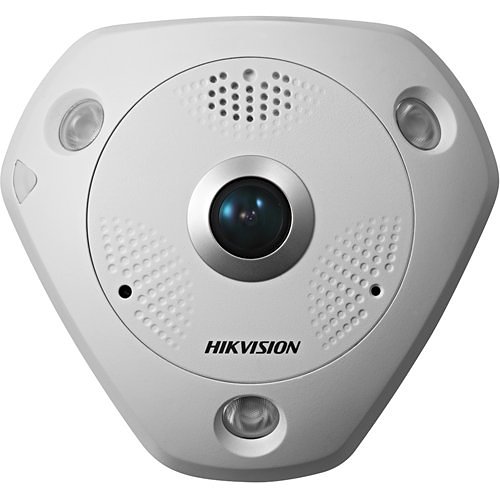

The Hikvision DS-2CD63C5G0-I(V)S Network Fisheye Camera delivers high-definition surveillance capabilities with its advanced H.265+ video compression technology, which optimizes bandwidth and storage efficiency.

Offering a 360° panoramic view of the surveillance area, this fisheye camera supports up to 18 live view display modes tailored for three mounting configurations and two decoding options, delivering versatile panoramic display solutions.

Equipped with a powerful 12 MP lens, the camera features an IR range of up to 50 feet (15 meters). Beyond standard behavior analysis and exception detection, this fisheye camera incorporates sophisticated heat map and intersection analysis capabilities powered by deep-learning technology.

The -V variant is specially crafted for outdoor applications.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution4000 x 3000

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CD63C5G0-IS 1.29MM
Product LineSmart
Product ModelDS-2CD63C5G0-IS
Product Name12 MP Network Fisheye Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.27 mm
Lens IncludedYes
Maximum Focal Length1.29 mm

Miscellaneous
FeaturesAudio Compression, Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-FE52H1TFI
Model Number ReplacesDS-2CC52H1T-FITS

Physical Characteristics
ColorWhite
Form FactorFisheye
Height1.8"
Weight (Approximate)3.09 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.6"
Mount TypeCeiling Mount, Desktop Mount, Junction Box Mount, Pendant Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of Viewhorizontal field of view: 180°, vertical field of v iew: 180°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/2.2
Maximum Frame Rate30 fps
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs3

Warranty
Limited Warranty36 Month
