Description

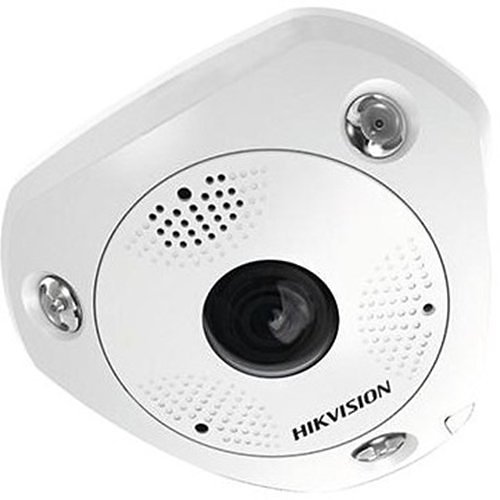

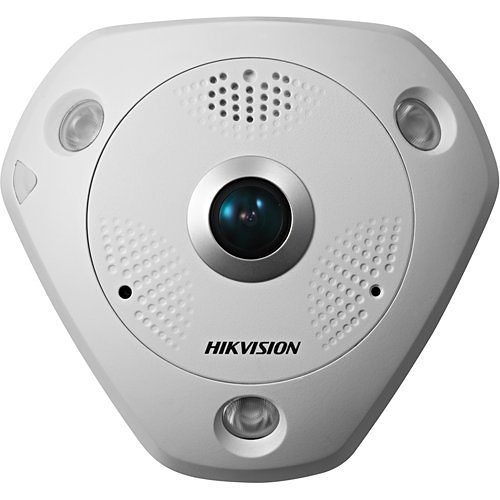

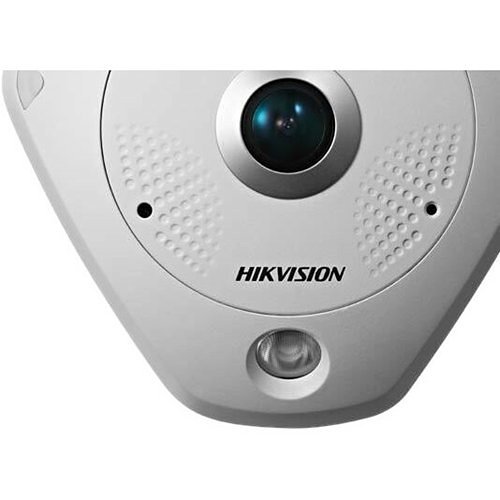

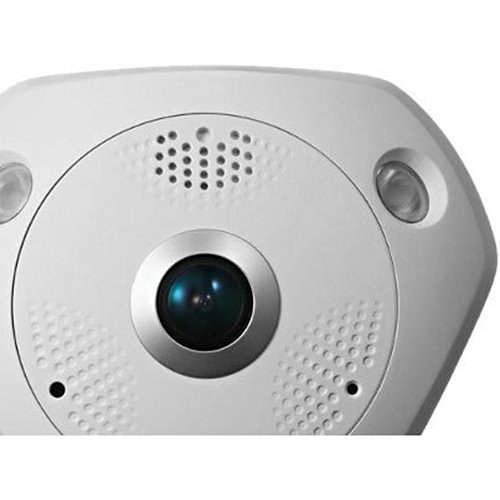

The Hikvision DS-2CD63C5G0E-I(V)S Network Fisheye Camera delivers high-definition video output, making it ideal for advanced surveillance solutions. Utilizing H.265+ video compression technology, it ensures efficient bandwidth and storage utilization. This camera offers a comprehensive 360° panoramic view of the monitoring area and supports up to 18 live view display modes, catering to three different mounting types and two decoding modes for versatile panoramic display options. Featuring a 12 MP lens with an infrared range of up to 50 feet (15 meters), this Fisheye camera includes intelligent features such as behavior analysis and anomaly detection. The -V variant is specifically designed for outdoor surveillance applications.

Camera
Night Vision Distance50 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution4000 x 3000

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CD63C5G0E-IVS 2MM
Product LineSmart
Product ModelDS-2CD63C5G0E-IVS
Product Name12 MP Network Fisheye Camera
Product SeriesSmart
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2 mm
Lens IncludedYes
Maximum Focal Length2 mm

Miscellaneous
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Motion Detection, SD Card Local Storage
Impact Protection RatingIK08, IK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorFisheye
Height2.2"
Weight (Approximate)3.09 lb
Width6.6"

Power Description
Input Voltage12V DC

Product Information
Diameter6.6"
Length6"
Mount TypeCeiling Mount, Desktop Mount, Junction Box Mount, Pendant Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of Viewhorizontal field of view: 180° (wall mount), 360° (ceiling mount), 360° (table mount)
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs3

Warranty
Limited Warranty36 Year
