Description

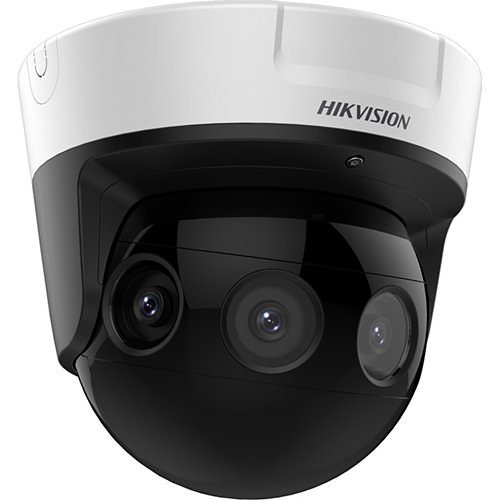

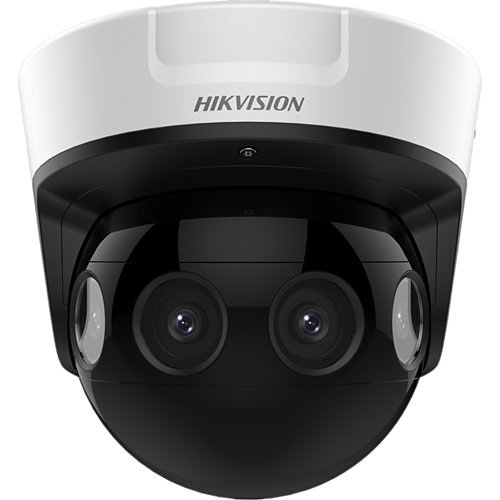

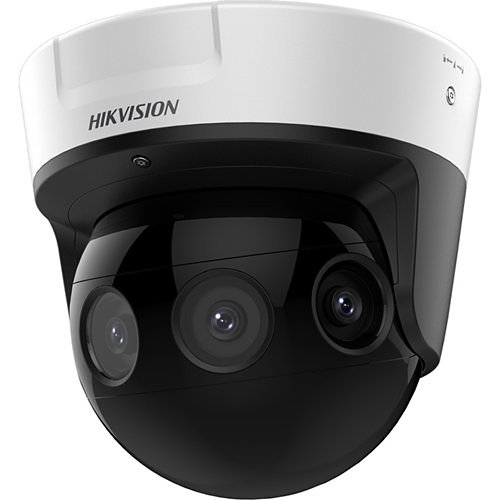

The Hikvision DS-2CD6924G0-IHS PanoVu panoramic outdoor dome camera is engineered with four lenses to seamlessly integrate a 180° horizontal perspective (2.8 mm: 90° vertical) for comprehensive panoramic viewing. This device provides versatile viewing options such as Panorama1, Panorama + ePTZ, Divided Panorama, and Original.

Key Features:
– 180° stitched imaging captures all scenes within the camera’s reach.
– Equipped with a built-in heater, it can operate in ultra-low temperatures down to -40° F (-40° C).
– Smart human density counting and public behavior analysis enhance safety in public spaces.
– Supports advanced compression technologies H.265+ and H.264+.
– Water and dust resistance with IP67 rating and vandal resistance with an IK10 rating.
– Infrared range extends up to 66 ft (20 m) with four IR LEDs.
– Operates at 12 VDC, 1.6 A, with a maximum power consumption of 24 W.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/25 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CD6924G0-IHS 2.8MM
Product LinePanoVu
Product ModelDS-2CD6924G0-IHS
Product Name8 MP 180° PanoVu Network Camera
Product SeriesSmart
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in Heater, Built-in HLC, Day/Night, Defog, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-OD6924
Model Number ReplacesDS-2CD6924F-IS 4MMDS-2CD6924F-I(S)

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof
Form FactorDome
Weight (Approximate)6.61 lb
Width8.2"

Power Description
Input Voltage12V DC

Product Information
Length8.1"
Mount TypePendant Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal FOV 180°, vertical FOV 90°
HD RecordingYes
Lens Mount TypeM16
Lens TypeFixed
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs4

Warranty
Limited Warranty36 Months
