Brand: Hikvision

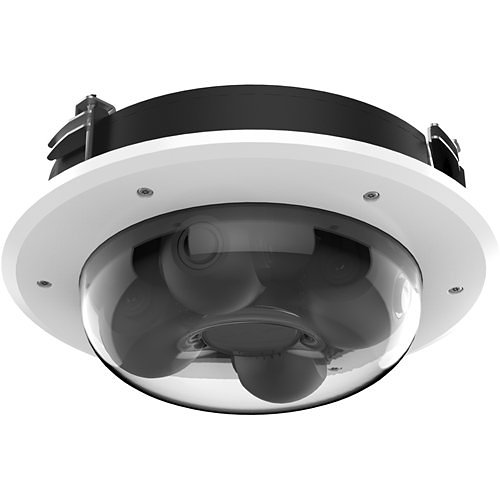

Hikvision DS-2CD6D54G1-ZS/RC Smart Series PanoVu 20MP Outdoor Multi-Sensor Flexible IP Camera, 2.8-8mm Motorized Varifocal Lens, White

Name: Hikvision DS-2CD6D54G1-ZS/RC Smart Series PanoVu 20MP Outdoor Multi-Sensor Flexible IP Camera, 2.8-8mm Motorized Varifocal Lens, White
Brand: Hikvision
SKU: DS-2CD6D54G1-ZS/RC
Availability: InStock

in stock

Special Order

$1,026.89

Supports surveillance resolution up to 2560 x 1920 for real-time monitoring
Equipped with a CMOS sensor, offering cost-efficiency, low power consumption, and superior HD video quality compared to CCD sensors
8 mm max focal length for accurate identification at extended ranges with improved coverage
Features an f/1.9 maximum aperture for reliable, detailed, and sharp imaging output with enhanced reliability
2.9x optical zoom for optimized surveillance efficiency, maintaining high image quality
Provides night vision capabilities for viewing objects up to 98.43 feet away
Incorporates infrared night vision to enhance usability and improve monitoring effectiveness
Utilizes a varifocal lens for adaptive surveillance productivity and added flexibility
Ceiling-mount design for optimal performance and convenience in installation
Includes Wide Dynamic Range technology for increased reliability and functionality

SKU: DS-2CD6D54G1-ZS/RC Categories: IP Cameras, Panoramic Cameras, Video Surveillance Brand: Hikvision

Description

The Hikvision DS-2CD6D54G1-ZS/RC PanoVu Flexible Outdoor Network Camera is equipped with a 1/2.7″ progressive scan CMOS sensor and four adaptable lenses. Each lens delivers a high resolution of up to 2560 x 1920 at 24 frames per second. The advanced H.265+ compression technology significantly optimizes bandwidth efficiency and storage utilization.

– Minimum Illumination: 0.0125 lux in color (f/1.9, AGC on), 0.0025 lux in B/W (f/1.9, AGC on)
– Resolution: 2560 x 1920 @ 24 fps
– Flexible 4-Lens Configuration
– Supports H.265+, H.265, H.264+, H.264 Compression Formats
– Dual 2-Axis Camera Gimbals
– Infrared Range: Up to 100 feet (30 meters)
– Durability Standards: IP67, IK10

Camera
Night Vision Distance	98.43 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP67
TAA Compliant	No

Display & Graphics
Color Supported	Color, Monochrome
Maximum Video Resolution	2560 x 1920

Environmental Conditions
Maximum Operating Temperature	140°F (60°C)
Minimum Operating Temperature	-22°F (-30°C)
Operating Humidity	95%

Exposure
Longest Shutter Speed	1 Second
Shortest Shutter Speed	1/100000 Second

General Information
Brand Name	Hikvision
Manufacturer	Hikvision
Manufacturer Part Number	DS-2CD6D54G1-ZS/RC
Product Line	Smart
Product Model	DS-2CD6D54G1-ZS/RC
Product Name	PanoVu Flexible Network Camera
Product Type	Network Camera

Interfaces/Ports
Network (RJ-45)	Yes

Lens
Focal Length	2.8-8 mm
Lens Included	Yes
Maximum Focal Length	8 mm

Miscellaneous
Features	Alarm Triggering, Back Light Compensation (BLC), Day/Night, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range
Impact Protection Rating	IK10
Indoor/Outdoor	Outdoor
Package Contents	PanoVu Flexible Network Camera Quick Start Guide Drill Template Watertight Cable Connector Tool Microfiber Cloth Wrench

Network & Communication
Remote Management	Yes

Physical Characteristics
Color	White
Color Family	White
Durability	Dustproof, Impact Resistant, Waterproof
Form Factor	Panoramic
Product Color	White
Weight (Approximate)	4.50 lb

Power Description
Input Voltage	12V DC, 24V AC

Product Information
Diameter	10"
Mount Type	Ceiling Mount

Storage
Storage Type	Memory Card

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	5MP
Field of View	Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°f
HD Recording	Yes
Lens Mount Type	F14
Lens Type	Varifocal
Maximum Aperture	f/1.9
Maximum Frame Rate	60 fps
Minimum Focal Length	2.8 mm
Night Vision	Yes
Night Vision Type	Infrared
Optical Zoom	2.9x

Warranty
Limited Warranty	3 Year
