Description

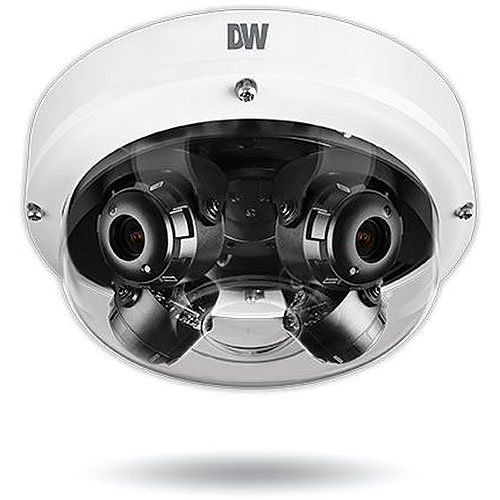

This MEGApix® Flex™ IP camera, powered by intelligent video analytics (IVA), serves as your gateway to robust video analysis capabilities. This 20MP NDAA-compliant multi-sensor, configurable panoramic view IP camera minimizes total system costs by delivering four video streams at real-time 30fps, utilizing vari-focal lenses within a single housing for streamlined installation. The MEGApix IVA cameras are equipped with a high-performance engine designed to detect and classify people and vehicles in real-time. The IVA+ upgrade enhances this with advanced Video Content Analysis detection capabilities. This camera employs Star-Light Plus™ technology for color imaging in near-total darkness and features true WDR for superior video quality in diverse lighting conditions. It includes four (4) vari-focal lens modules with motorized zoom and auto-focus that can be easily arranged on a magnetic track. Options for wall, ceiling, junction box, or in-ceiling flush mounts are available separately to complete the camera’s installation.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-PVX20WATW
Product LineMEGApix
Product ModelDWC-PVX20WATW
Product NameMEGApix IVA DWC-PVX20WATW Network Camera
Product SeriesPVX2
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-8 mm
Lens IncludedYes
Maximum Focal Length8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Noise Reduction, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Dual Stream, Mirror, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-PVX16W2W
Model Number ReplacesDWC-PVX16W2W

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height3.6"
Weight (Approximate)4.19 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Flush Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution20MP
Field of View4x 51° ~ 93° HFoV/ 4x 39°~68° VFoV
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Optical Zoom2.9x

Warranty
Limited Warranty5 Year
