Description

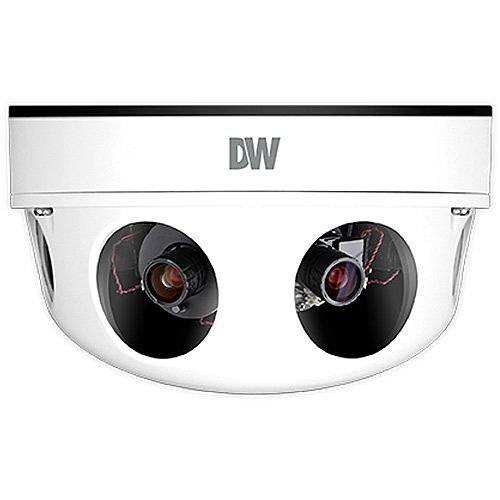

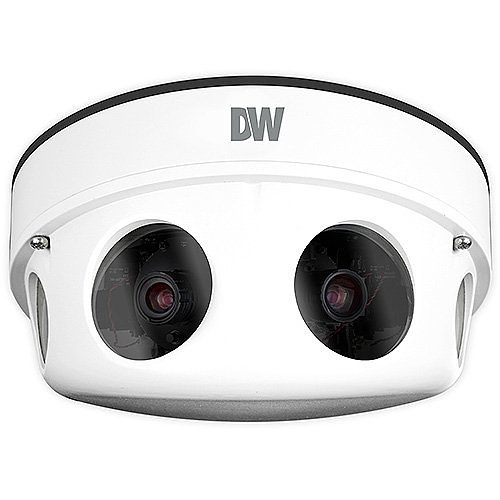

**4-Sensor 180° View IP Camera**

Experience expansive surveillance coverage and detailed forensic capabilities with a single camera solution. Our 21MP 4-sensor IP cameras offer a seamless 180° field of view at a smooth 30fps through a single PoE Plus connection.

**High Megapixel Resolution in Multi-Sensor IP Cameras**

Leverage cutting-edge technology to deliver ultra-clear images at any resolution. High megapixel capability enables detailed forensic analysis by allowing zoom without sacrificing image clarity.

**Effortless Image Stitching**

Our multi-sensor panoramic cameras feature three or four sensors that effortlessly combine images into a cohesive 180° view. This seamless transition is achieved through an auto-alignment function available in the camera settings.

**High-Speed Framerate**

The panoramic cameras support 8K/32MP streaming at a consistent real-time 30fps, ensuring smooth video playback without any loss of detail from frame to frame.

**ONVIF® Compatibility**

Our ONVIF-compliant IP products integrate seamlessly with any existing surveillance infrastructure comprising ONVIF components, offering robust and tailored surveillance solutions to meet various security requirements.

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3096 x 2080
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity80%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-PZ21M69TW
Product LineMEGApix
Product ModelDWC-PZ21M69TW
Product NameMEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length8 mm
Lens IncludedYes
Maximum Focal Length8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Defog, Dual Stream, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Vehicle Detection, White Balance

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Tamper Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorPanoramic
Product ColorWhite
Weight (Approximate)4.40 lb

Power Description
Input Voltage12V DC

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View180°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length8 mm

Warranty
Limited Warranty5 Year
