Description

**Weatherproof Standards**

Compliant with international IP67 ratings, these cameras are engineered to withstand dust and moisture, making them suitable for installations in challenging wind and rainy conditions.

**Day and Night Functionality with IR-Cut Filter Removal**

The F2R36C2IM camera leverages a mechanical IR cut filter to enhance infrared sensitivity, delivering superior images during nighttime. The removable IR-cut filter supports seamless day and night operation, ensuring exceptional visibility even in low-light environments.

**Vandal Resistance**

Featuring an IK10-approved housing, the camera is built to endure physical tampering and protect against vandalism.

**Advanced Low-Light Technology (Sense Up+)**

Provides exceptional video quality in low-light scenarios without motion blur. The technology ensures clear video capture even at night, without the need for additional lighting.

**3D Noise Reduction Technology**

Effectively reduces noise from video signals, enhancing image clarity and maintaining high-quality video output even in low-light conditions.

**Enhanced Wide Dynamic Range (WDR)**

Widely Dynamic Range (WDR) technology captures intricate details in both brightly lit and shaded areas, improving image quality by enhancing visibility in high-contrast lighting situations.

**Privacy Masking Feature**

The Privacy Masking functionality allows you to safeguard personal privacy by obscuring private areas within the camera’s view, such as doorways and home windows, from surveillance monitoring.

**Mobile Video Surveillance App**

Compatible with Android and iOS, the LILINViewer app offers features like security alarm push notifications, real-time live viewing, and remote video playback for comprehensive video surveillance on-the-go.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3008 x 3000

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/25 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameMerit LILIN
ManufacturerMerit LILIN Ent. Co., Ltd
Manufacturer Part NumberF2R36C2IM
Product ModelF2R36C2IM

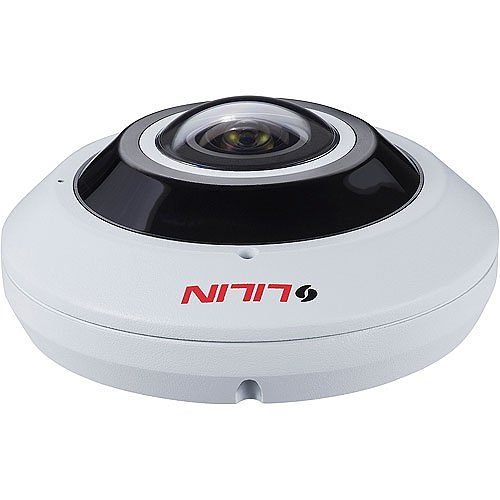

Product Name12MP Day & Night Fixed IR Vandal Resistant Panoramic IP Camera
Product SeriesF2
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.2 mm
Lens IncludedYes
Maximum Focal Length1.2 mm

Miscellaneous
Features3D Noise Reduction, Alarm Detection, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Moisture Resistant, Rain Resistant, Vandal Resistant, Vandalproof, Waterproof, Weatherproof, Wind Resistant
Form FactorFisheye
Weight (Approximate)1.29 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.7"

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of View185° (H) 185° (V) 185° (D)
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.2
Maximum Frame Rate25 fps
Minimum Focal Length1.2 mm
Night VisionYes
Night Vision TypeInfrared
