Description

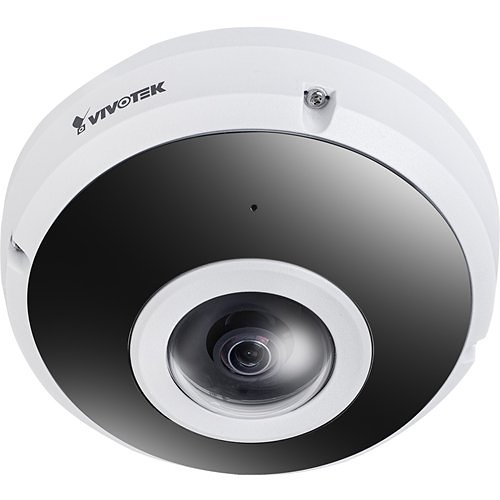

The innovative 6-Megapixel FE9382-EHV-v2 enhances VIVOTEK’s 360° fisheye camera lineup. This true day/night surveillance camera features a removable IR-cut filter and 360° IR illumination with Smart IR II technology, effective up to 20 meters. It captures up to 30fps at full 6MP resolution and employs WDR Pro 120dB to deliver exceptional image quality in challenging lighting conditions. This ensures clear, high-quality images around-the-clock.

Engineered for demanding outdoor environments, the FE9382-EHV-v2 boasts an IP66-rated housing, providing resistance to rain and dust, alongside IK10-rated robustness for vandalism protection. With additional NEMA 4X protection, it is suitable for extreme offshore applications.

Equipped with VIVOTEK’s advanced Smart VCA (Video Content Analysis), this surveillance camera utilizes AI-powered deep learning and Smart Motion Detection. This enables precise and rapid event detection, including line crossing and missing object alerts, exclusive to our SUPREME product line.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFE9382-EHV-V2
Product ModelFE9382-EHV-V2
Product NameFE9382-EHV-v2 Fisheye Network Camera
Product SeriesS
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.3 mm
Lens IncludedYes
Maximum Focal Length1.25 mm

Miscellaneous
Features3D Digital Noise Reduction, Active Tampering Alarm, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, ePTZ, Highlight Compensation (HLC), Motion Detection, Password Protection, SD Card Local Storage, Shock Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents FE9382-EHV-v2 Fisheye Network Camera Quick installation guide alignment sticker screw pack desiccant bag

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof, Weatherproof
Form FactorFisheye
Weight (Approximate)1.55 lb

Power Description
Input Voltage12V DC

Product Information
Diameter5.9"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of View180°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length1.245 mm
Number of IR LEDs4

Warranty
Limited Warranty36 Month
