Description

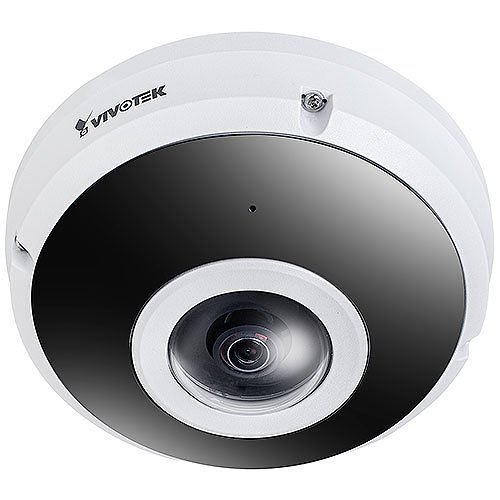

The VIVOTEK FE9391-EHV-v2 is a state-of-the-art outdoor fisheye network camera, boasting a 12-Megapixel sensor for exceptional image clarity. Designed with WDR Pro technology, it delivers optimal image quality in highly contrasting lighting conditions. Its H.265 compression combined with Smart Stream III minimizes bandwidth and storage usage. With built-in IR illuminators and advanced Smart IR II technology, the camera ensures visibility up to 20 meters in complete darkness. The robust housing features an IP66 rating for protection against rain and dust and an IK10 rating for defense against vandalism, alongside NEMA 4X protection for extreme environmental conditions. The 12-Megapixel fisheye lens offers a 360-degree panoramic view without blind spots, making it ideal for extensive coverage areas like airports, educational institutions, parking facilities, and more. The FE9391-EHV-v2 is integrated with VIVOTEK’s Smart VCA (Video Content Analysis), leveraging AI-driven deep-learning algorithms and Smart Motion Detection to facilitate rapid and precise event trigger detection, including intrusion and missing object alerts. This innovative analytics suite is an exclusive feature of the SUPREME product line.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFE9391-EHV-V2
Product ModelFE9391-EHV-v2
Product NameFE9391-EHV-v2 Network Camera
Product SeriesS
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.22 mm
Lens IncludedYes
Maximum Focal Length1.22 mm

Miscellaneous
Features3D Digital Noise Reduction, 3D Noise Reduction, Audio Detection, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Noise Detection, SD Card Local Storage, Tamper Detection
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-FE9391EV
Model Number ReplacesFE9391-EV

Physical Characteristics
ColorBlack
Color FamilyDual Color
DurabilityDust Resistant, Impact Resistant, Rain Resistant, Vandal Resistant, Waterproof
Form FactorFisheye
Product ColorBlack, White
Weight (Approximate)1.55 lb

Product Information
Diameter5.9"
Mount TypeCeiling Mount, Desk Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of View180°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.0
Maximum Frame Rate30 fps
Minimum Focal Length1.22 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs5

Warranty
Limited Warranty36 Year
