Description

The WizMind Series devices deliver a range of Dahua Analytics features, providing comprehensive, human-centric analytic solutions. These products offer capabilities such as perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionalities. The WizMind Series is perfect for complex scenarios requiring sophisticated analytic capabilities.

Enjoy exceptional 5 MP video clarity and the expansive coverage of a 360° panoramic fisheye camera. This camera ensures high-quality images with sharp details and precise color accuracy, even in challenging lighting conditions, thanks to its True WDR (120 dB) technology. The compact design eliminates the need for multiple single-sensor cameras, offering a higher return on investment, making it a superb choice for small to mid-sized business security applications.

Camera
Image Sensor TypeCMOS
Night Vision Distance32.81 ft
Wide Dynamic RangeYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberN55CT5
Product LineWizMind
Product ModelN55CT5

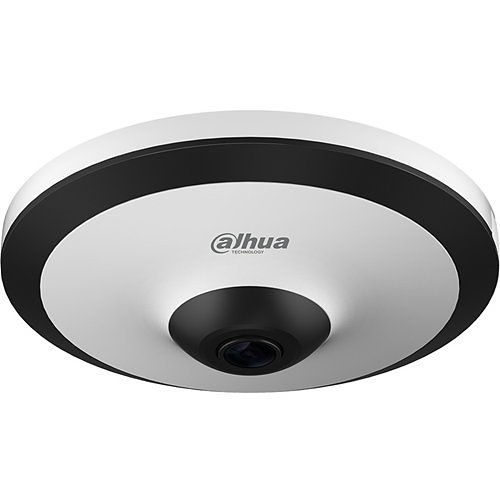

Product Name5MP Panoramic Network Fisheye Camera
Product SeriesPro
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.4 mm
Lens IncludedYes
Maximum Focal Length1.4 mm

Miscellaneous
Country of OriginCN
FeaturesAlarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Built-in Microphone, Day/Night, Motion Detection, Noise Reduction, Privacy Masking, Region of Interest
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-N55BT5
Model Number ReplacesN55BT5

Physical Characteristics
ColorWhite
Form FactorFishEye
Weight (Approximate)10.58 oz

Power Description
Input Voltage12V DC

Product Information
Diameter5"
Mount TypeCeiling Mount, Pole Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 360° Vertical: 180° Diagonal: 180°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length1.4 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs3
Video FormatsH.264, H.265, MJPEG

Warranty
Limited Warranty5 Year
