Description

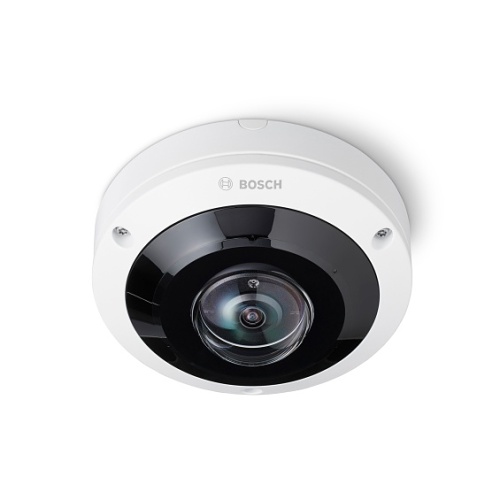

The NDS-5704-F360LE is an advanced, discreet panoramic surveillance camera ideal for both indoor and outdoor security applications. It features a stereographic panoramic lens offering seamless 360° coverage, eliminating blind spots, and providing comprehensive situational awareness in a single, detailed view. This makes it perfect for wide-area surveillance needs.
Equipped with cutting-edge system on chip (SoC) technology, the camera offers dewarping capabilities for effortless integration and versatile viewing and recording options. Furthermore, its built-in Intelligent Video Analytics enhance full situational awareness by triggering relevant alerts, while the integrated Audio AI interprets captured sounds.
The camera’s adjustable IR feature allows operators to manage IR intensity dynamically across multiple zones, preventing IR saturation. The versatility is extended with a wide range of inputs and outputs, including alarms and video output for HDMI-compatible devices, making it adaptable to diverse surveillance setups.
With IK10 and IP66 ratings, the camera is robustly built to withstand vandalism and various weather conditions, ensuring durability and reliability.
**Features**
**12MP Sensor Resolution**
The camera boasts a high-performance 12MP sensor to deliver exceptional detail with 30 fps for real-time motion capture. Coupled with its stereographic lens, it provides a 9MP effective resolution within its image circle.
**Panoramic Vision and Intelligent Video Analytics**
Integrating full panoramic vision with sophisticated Intelligent Video Analytics software, this surveillance solution delivers exceptional situational awareness. It features intelligent tracking, allowing continuous monitoring across the full image circle without the need for transition between cameras, thus simplifying movement analysis significantly. The system is designed to reliably detect, track, and analyze objects, triggering alerts when predefined conditions are met. It’s tailored for the most demanding environments and is highly resistant to false alarms caused by challenging conditions such as snow, wind, rain, hail, and water reflections. Simple calibration is achieved by entering the camera’s mounting height, with an internal gyro/accelerometer sensor providing additional data for precise analytics configuration.
**Camera Trainer**
Utilizing machine learning, the Camera Trainer feature lets users define and create detectors for objects of interest through examples of target and non-target objects. Unlike the Intelligent Video Analytics that focus on moving objects, the Camera Trainer can detect and classify both moving and non-moving objects instantaneously. Users can set up the Camera Trainer using live video or recorded footage via Configuration Manager, and the generated detectors can be shared or deployed across different cameras. A complimentary license is required for activating this machine learning capability.
