Description

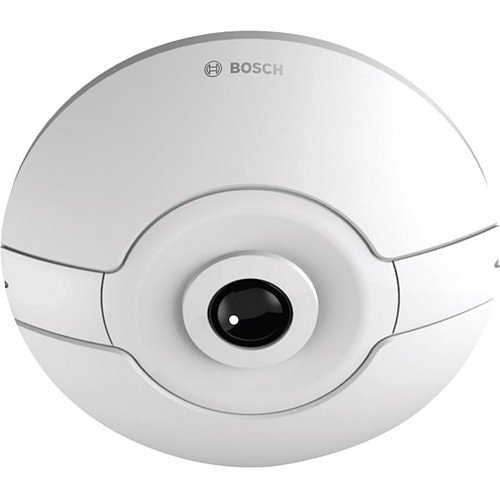

The FLEXIDOME IP panoramic 7000 MP is a discreet and aesthetically pleasing low-profile surveillance camera designed for indoor environments. Featuring a 12MP sensor that operates at 30 fps, this camera delivers comprehensive panoramic security monitoring with full area coverage, capturing fine details even at high speeds. It provides total situational awareness along with simultaneous electronic pan, tilt, and zoom (E-PTZ) views in high resolution.

**Lens Options**
The 360° lens variant, when centrally ceiling-mounted, offers complete wall-to-wall surveillance coverage. Meanwhile, the 180° lens version provides higher effective resolution, making it ideal for wall installations or ceiling mounts in corridor settings.

**Dewarping Technology**
The lens captures a circular image, which is then transformed into various distortion-free rectangular views using our advanced dewarping software. For seamless system integration, users can choose between edge dewarping capabilities within the camera itself or opt for client-side dewarping on external platforms. Advanced client-side dewarping features are available through Video Security Client.

**Advantages of Panoramic Security Monitoring**
Panoramic security monitoring delivers full 180° or 360° coverage of designated spaces. Panoramic cameras provide total situational awareness and are perfectly suited for tracking movement in one continuous uninterrupted motion.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution3640 x 2160

Environmental Conditions
Maximum Operating Temperature104°F
Minimum Operating Temperature-4°F

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNIN-70122-F1AS
Packaged Quantity1
Product LineFLEXIDOME IP
Product ModelNIN-70122MP-F1MPAS
Product NameNIN-70122 mP-F1 mPAS Fixed dome12 mPMP180 mPº IVA surfacemount
Product Series7000
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3 mm - 9 mm
Maximum Focal Length2.1 mm

Miscellaneous
Environmental CertificationChina RoHS, WEEE
Environmentally FriendlyYes
Indoor/OutdoorIndoor
Package Contents1 FLEXIDOME IP panoramic7000 camera, 1 Identification label sheet, 1 Installation guide, 1 Mounting ring, 1 Surface Mount Box with four M5 screws (delivered separately with SMB versions of the camera, 2 Allen keys (T10 and1 .5 ), 2 Washers (M4 x14 ) for mounting to4 s box, 4 Plugs, 4 Screws (4 .5 x40 )

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Form FactorDome
Height1.3"
Weight (Approximate)15.70 oz

Product Information
Mount TypeSurface Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of ViewH:180-93°
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate30fps
Minimum Focal Length2.1 mm
