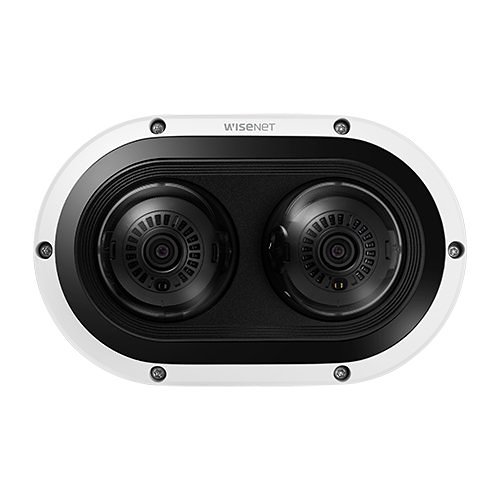

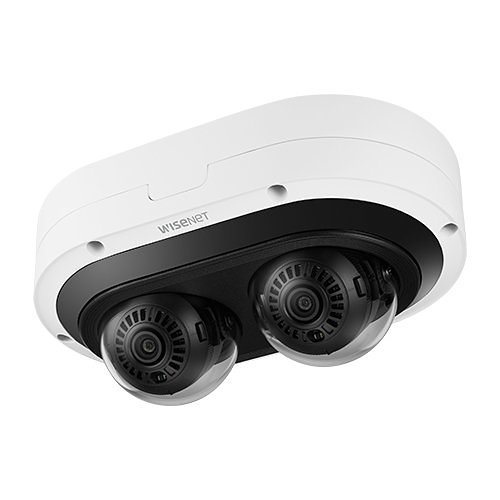

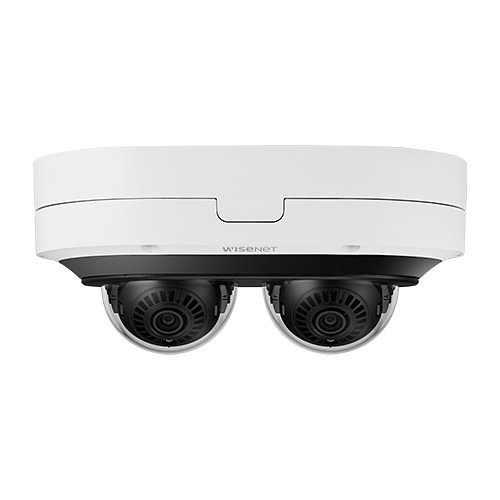

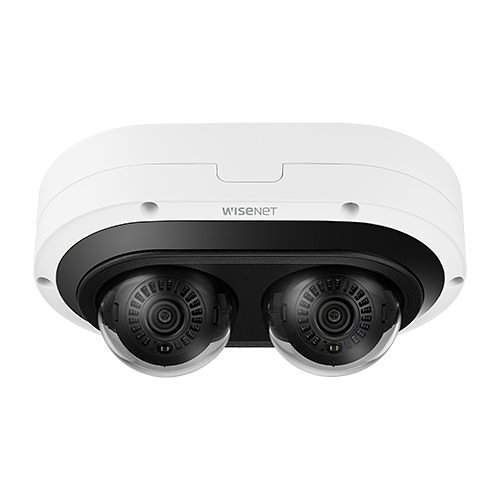

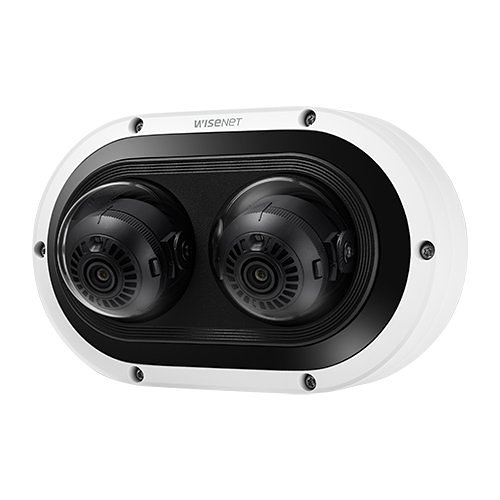

Hanwha PNM-12082RVD 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10

Name: Hanwha PNM-12082RVD 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10
Brand: Hanwha Vision
SKU: PNM-12082RVD
Availability: InStock

in stock

In Stock

$958.86

Explore the advanced features of this security technology:

- Equipped with WiseNR, WiseStreamII, and extremeWDR technologies providing a dynamic range of 120 dB
- Supports a maximum resolution of 3328x1872 for high-definition surveillance
- Capable of achieving up to 15 frames per second at 6 megapixels
- Delivers color clarity at 0.16 lux (F1.67, 1/30sec, 30IRE), and 0 lux with IR LED enabled
- Features a versatile 78° tilt angle
- Infrared capability extends up to 25 meters (82 feet), depending on the scene
- Includes TPM 2.0, certified with FIPS 140-2 for enhanced security integrity
- Rugged design with IP66, IK10, and NEMA4X ratings for resistance to harsh environmental conditions
- Supports triple codec options including H.265, H.264, and MJPEG for flexible video encoding

SKU: PNM-12082RVD Categories: IP Cameras, Panoramic Cameras, Video Surveillance Brand: Hanwha Vision

Description

The PNM-12082RVD is a robust outdoor network surveillance camera with enhanced vandal resistance. It features a dual-channel configuration and infrared (IR) capabilities integrated within a dome design, ensuring seamless installation via a convenient USB port. This camera supports Day and Night (ICR) functionality, extreme Wide Dynamic Range (WDR) at 120dB, Digital Image Stabilization (DIS), and advanced handover technology. It offers license-free intelligent video analytics, including virtual line crossing, directional monitoring, entry/exit detection, object appearance/disappearance, loitering detection, intrusion alarm, defocus detection, motion sensing, and tampering alerts. Additionally, it supports audio detection and sound classification, with an optional I/O box available for enhanced audio functionality.

Camera
Night Vision Distance	82.02 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66, IP67
TAA Compliant	Yes

Display & Graphics
Color Supported	Color
Maximum Video Resolution	1600 x 1200
Number of Sensors	2

Environmental Conditions
Maximum Operating Temperature	131°F (55°C)
Minimum Operating Temperature	-40°F (-40°C)
Operating Humidity	95%

Exposure
Longest Shutter Speed	2 Second
Shortest Shutter Speed	1/12000 Second

General Information
Brand Name	Hanwha Vision
Manufacturer	Hanwha Group
Manufacturer Part Number	PNM-12082RVD
Product Model	PNM-12082RVD
Product Name	6MP X 2 IR Outdoor Dome
Product Series	P
Product Type	Network Camera

Interfaces/Ports
Network (RJ-45)	Yes

Lens
Focal Length	3.54-6.69 mm
Lens Included	Yes
Maximum Focal Length	6.69 mm
Minimum Aperture	f/2.64

Miscellaneous
Features	Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection Rating	IK10
Indoor/Outdoor	Outdoor

Network & Communication
Remote Management	Yes

Others
ADI Part Number Replaces	SQ-PNM9000VD
Model Number Replaces	PNM-9000VD

Physical Characteristics
Color	White
Color Family	White
Depth	5.3"
Durability	Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor	Dome
Height	3.7"
Product Color	White
Weight (Approximate)	2.93 lb
Width	8.5"

Product Information
Mount Type	Box Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Storage Type	Memory Card

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	6MP
Field of View	H: 96°(Wide)~47°(Tele) V: 51°(Wide)~26°(Tele) D: 113°(Wide)~54°(Tele)
HD Recording	Yes
Lens Type	Varifocal
Maximum Aperture	f/1.67
Maximum Frame Rate	15 fps
Minimum Focal Length	3.54 mm
Night Vision	Yes
Night Vision Type	Infrared
Optical Zoom	1.9x

Warranty
Limited Warranty	3 Years
