Description

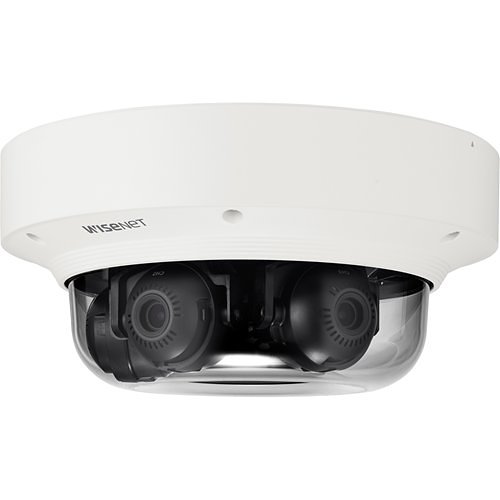

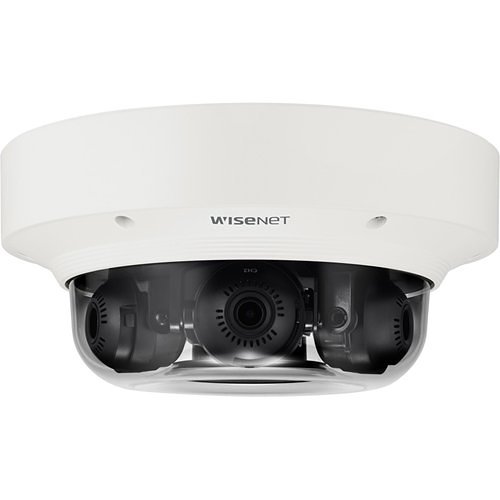

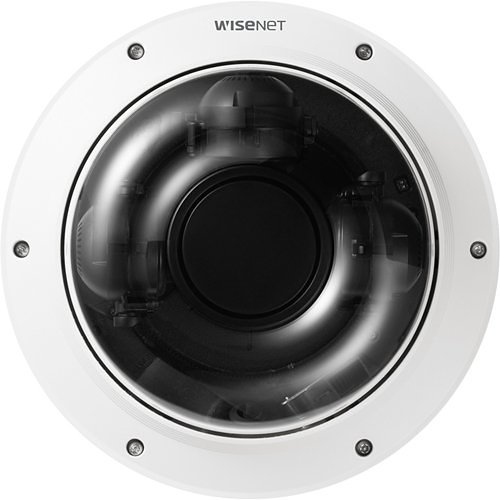

The Wisenet P series network vandal-resistant outdoor multi-sensor, multi-directional dome camera features three 2MP sensors, offering a total resolution of 6MP. Each camera head is equipped with a motorized vari-focal lens (3.0~6.0mm) with a 2x zoom, delivering 30fps and a maximum field of view of 321°. This advanced surveillance technology supports triple codec formats, including H.265, H.264, and MJPEG, enhanced by WiseStream II compression technology. With 150dB wide dynamic range (WDR), defocus detection, and integrated video analytics, this camera ensures superior image quality and performance. Additional features include true day/night functionality, two SD card slots for extended storage, a hallway view mode, high light compensation (HLC), PoE+ support, and robust environmental and impact resistance with an IP66/IK10 rating. It operates in temperatures ranging from -40°C to +55°C (-40°F to +131°F), housed in a sleek white body designed for durability.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200
Number of Sensors3

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberPNM-8082VT
Product ModelPNM-8082VT
Product Name6MP (2MP x 3) Multi-Sensor, Multi-Directional Camera
Product SeriesP
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3-6 mm
Lens IncludedYes
Maximum Focal Length6 mm
Minimum Aperturef/2.2

Miscellaneous
FeaturesAlarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Tamper Detection
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height5"
Product ColorWhite
Weight (Approximate)6.61 lb
Width10"

Product Information
Diameter9.9"
Mount TypeBackbox Mount, Box Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Pendant Mount, Pole Mount, Roof Mount, Wall Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/3.1
Maximum Frame Rate30 fps
Minimum Focal Length3 mm
Optical Zoom2x

Video
Analog Video Signal FormatCVBS
