Multi-Directional Surveillance Camera featuring interchangeable 4ea x 2MP / 5MP lens modules

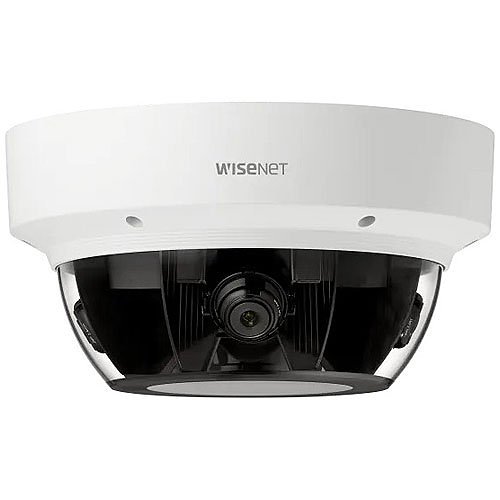

Hanwha PNM-9002VQ P-Series x 5MP 4-Channel Multi-Directional Camera, Lenses Not Included, White
In Stock
In Stock
$1,040.39
- Camera resolution ranges from 8MP to 20MP depending on chosen lens modules
- Supports up to 60fps at 2MP and 30fps at 5MP, compatible with H.265 and H.264 video codecs
- Wide Dynamic Range (WDR) of 150 dB with 2MP lens module and 120 dB with 5MP lens module
- Available fixed lenses for 2MP module include 2.4mm, 2.8mm, 3.6mm, and 6mm options
- 5MP module offers fixed lenses of 3.7mm, 4.6mm, and 7mm
- Supports H.265, H.264, and MJPEG codecs with multi-streaming capabilities
- Features video analytics and WiseStream II technology
- Designed to meet IP66 and IK10 standards, with 4 slots for SD / SDHC / SDXC memory
- Note: Lens modules are necessary for operation and are sold separately
| Camera | |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 1600 x 1200 |
| Number of Sensors | 4 |
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 90% |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM-9002VQ |
| Product Model | PNM-9002VQ |
| Product Name | 4x 2MP / 5MP Multi-sensor Multi-directional Camera |
| Product Series | P |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | No |
| Miscellaneous | |
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range |
| Impact Protection Rating | IK10 |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| ADI Part Number Replaces | SQ-PNM9000VQ |
| Model Number Replaces | PNM-9000VQ |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Color | White |
| Weight (Approximate) | 6.61 lb |
| Product Information | |
| Diameter | 10" |
| Mount Type | Box Mount, Ceiling Mount, Corner Mount, Flush Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| HD Recording | Yes |
| Lens Type | Fixed |
| Maximum Frame Rate | 60 fps |
| Video | |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3 Year |
