Description

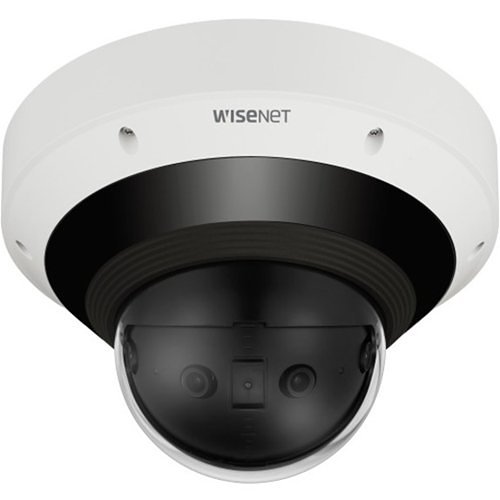

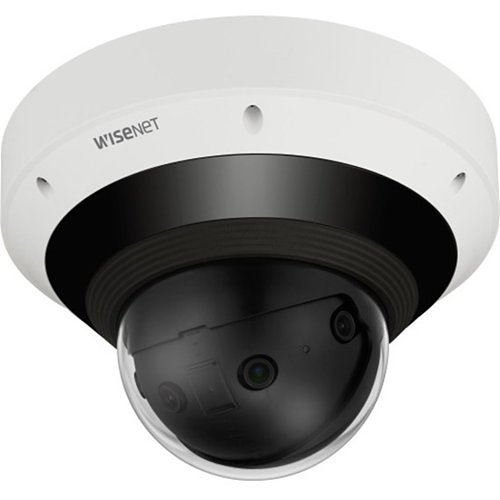

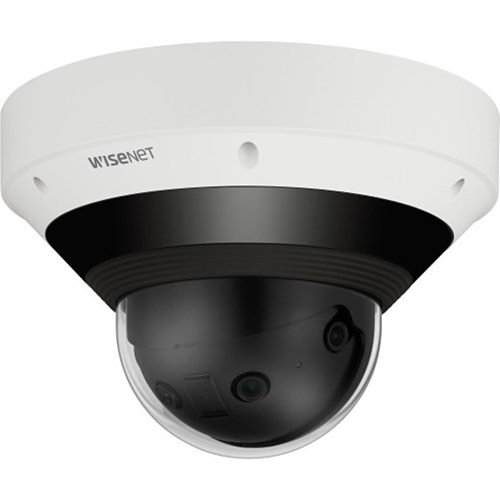

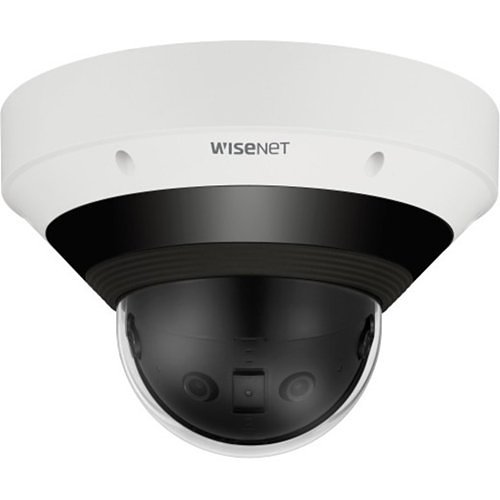

Introducing a cutting-edge network vandal-resistant outdoor multi-sensor dome camera designed for comprehensive surveillance solutions. This state-of-the-art camera delivers a panoramic view through stitched imagery, featuring four 5MP sensors for a total resolution of 15MP at 20fps. It supports triple codecs: H.265, H.264, and MJPEG, enhanced with WiseStream II technology for optimized bandwidth efficiency. With a Wide Dynamic Range (WDR) of 120dB and an infrared viewable length of 20 meters (65.5 feet), this camera excels in diverse lighting conditions. Its built-in video analytics include advanced sound classification, heatmap generation, and bi-directional audio support. The dual Micro SD slots provide ample local storage options, while its robust IP66, IK10, and NEMA4X ratings ensure durability in harsh environments. Enhanced cybersecurity features are integrated with TPM 2.0 (FIPS 140-2 level 2) standards, and flexible power options include PoE+ and 12VDC.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberPNM-9031RV
Product ModelPNM-9031RV
Product Name15MP Panoramic Camera
Product SeriesP
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.3 mm
Lens IncludedYes
Maximum Focal Length4.30 mm

Miscellaneous
FeaturesAlarm Triggering, Audio Compression, Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-PNM9030V
Model Number ReplacesPNM-9030V

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height6.7"
Product ColorWhite
Weight (Approximate)5.73 lb
Width10"

Power Description
Input Voltage12V DC

Product Information
Diameter10"
Mount TypePendant Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Field of View192°(H) x 65°(V)
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate20 fps
Minimum Focal Length4.3 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Years
