Description

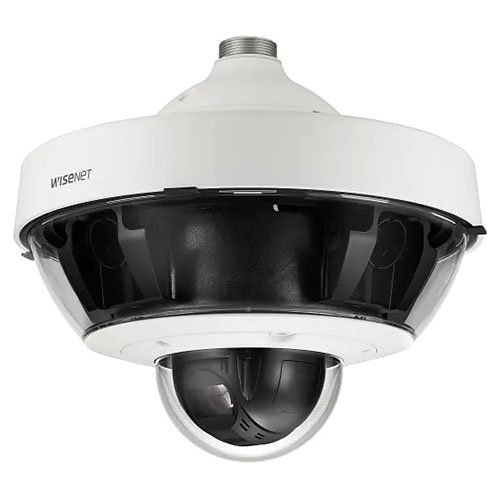

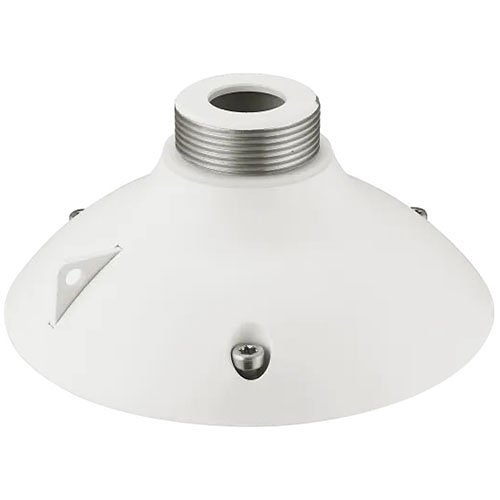

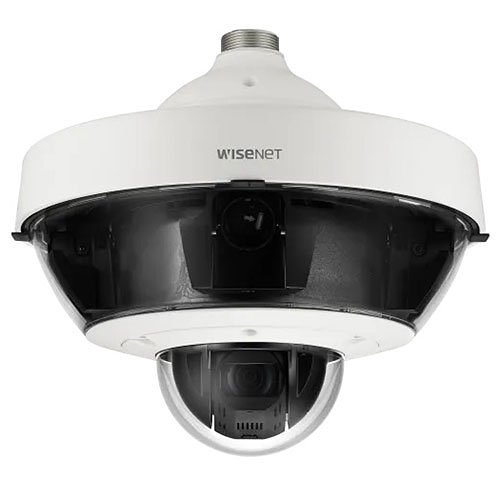

The network vandal-resistant outdoor multi-sensor, multi-directional surveillance camera features modular lens options ranging from 8MP to 20MP resolution, with four separate 2MP or 5MP sensors that are sold independently. It offers high-performance capabilities including a 2MP 32x optical zoom PTZ, supporting up to 60fps at 2MP or 30fps at 5MP with fixed focal lens modules. The camera supports triple codec H.265/H.264/MJPEG compression with advanced WiseStream II technology. It provides superior image clarity with 150dB WDR at 2MP or 120dB at 5MP, along with features like defocus detection, built-in analytics, and 4x SD card slots for storage. The hallway view feature, HLC, fog detection, and DIS (with Gyro Sensor) enhance its performance, with audio input/output available for PTZ channels only. The camera is equipped with HPoE with an injector included, and designed for harsh environments with an IP66/IK10 rating, capable of operating between -40°C to +55°C (-40°F to +131°F). A white camera body with a new easy installation cap and an SFP port in the injector rounds out its design. Optional 2MP lens modules include SLA-2M2400P (2.4mm), SLA-2M2800P (2.8mm), SLA-2M3600P (3.6mm), SLA-2M6000P (6mm), and SLA-2M1200P (12mm); 5MP lens modules include SLA-5M3700P (3.7mm), SLA-5M4600P (4.6mm), and SLA-5M7000P (7.0mm).

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberPNM-9322VQP
Product ModelPNM-9322VQP
Product Name10MP to 22MP Multi-directional + 2MP PTZ Network Camera
Product SeriesP
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedYes
Maximum Focal Length142.60 mm
Minimum Aperturef/4.4

Miscellaneous
FeaturesBack Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-PN9321VQP
Model Number ReplacesPNM-9321VQP

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)15.54 lb

Product Information
Diameter14.5"

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH 61.8°(Wide)~2.19°(Tele), V 36.2°(Wide)~1.24°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60 fps
Minimum Focal Length4.44 mm
Optical Zoom32x

Video
Analog Video Signal FormatCVBS
