Description

By leveraging edge-based AI analytics, advanced surveillance cameras can effectively differentiate between vehicles, humans, and other objects, significantly reducing false alarms commonly triggered by motion detection. This sophisticated technology enhances operational efficiency during forensic reviews. These AI-driven cameras are capable of real-time detection and classification of individuals, vehicles, faces, license plates, and more. Offering resolutions ranging from 2MP to 4K, their deep-learning algorithms reliably identify multiple distinct objects. As a result, false alarms due to unimportant movements, such as wind-blown trees, shadows, or animals, are minimized. The analytics serve as a dependable second set of eyes for operators, directing attention to critical real-time events and streamlining post-event forensic searches.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity0-95% RH(Non-condensing)

Exposure
Longest Shutter Speed2 Second
Minimum Illumination0.01 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberPNM-C32083RVQ
Product ModelPNM-C32083RVQ

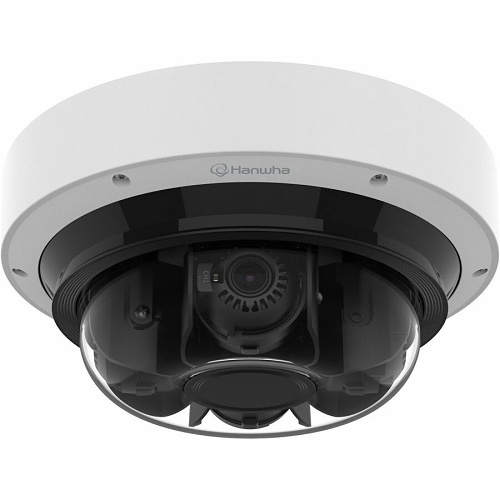

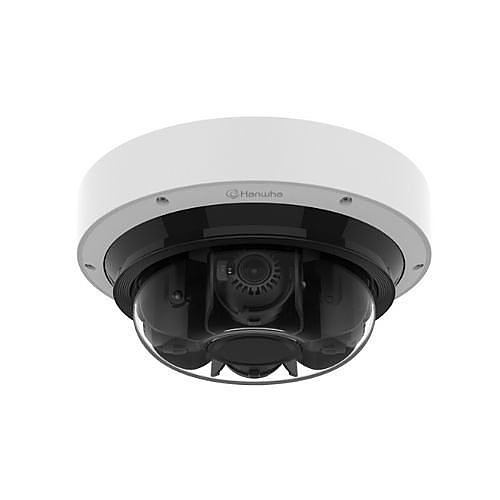

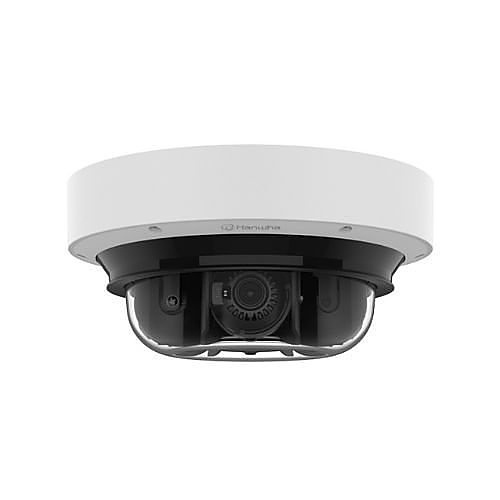

Product Name4K x 4 AI IR Multi-directional Dome
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.3-5.7 mm
Lens IncludedYes
Maximum Focal Length5.7 mm
Minimum Aperturef/1.9

Miscellaneous
Features120dB WDR, 15fps at 8MP (H.265, H.264) AI ON, 20fps at 8MP (H.265, H.264) AI OFF, 3.3-5.7mm (FoV H - 109°-56°, V - 55°-31°) motorized varifocal lens, 8MP x 4 Channel multi-directional camera, using one IP address, Analytics events based on AI engine - Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, H.265, H.264, MJPEG codec, Multi-streaming, I/O Box compatibility for audio and alarm I/O, Integrated IR that rotates with camera head, IR viewable length [PoE ] 15m (49ft)/[HPoE] 20m (65ft), USB port for easy installation, WiseNR ? (using AI engine), WiseStream? (Based on AI engine)
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)6.22 lb

Product Information
Diameter9.84"
Mount TypeConduit Mount, Gang Box Mount, Pendant Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution32MP
Field of ViewH: 109°-56°, V: 55°-31°, D: 136°-65°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.5
Maximum Frame Rate20 fps
Minimum Focal Length3.3 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom1.7x

Warranty
Limited Warranty5 Year
