Description

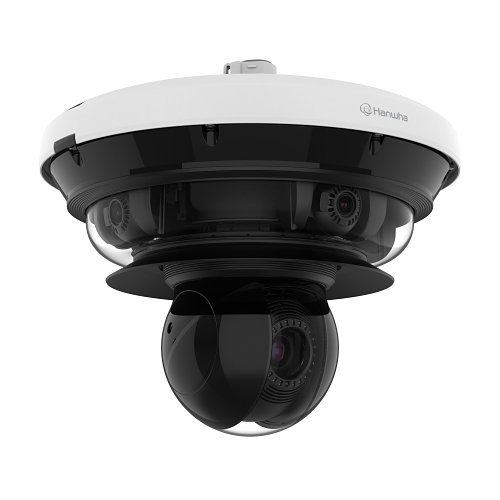

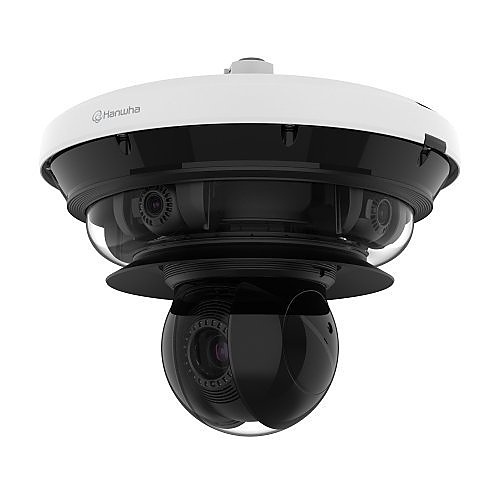

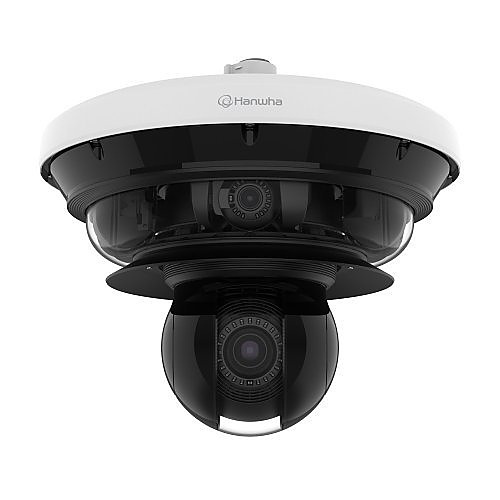

Introducing the PNM-C344004RQPZ, a cutting-edge surveillance solution for the security industry. This outdoor vandal-resistant Multi-Directional network camera integrates advanced technologies such as Artificial Intelligence (AI), Infrared (IR) capability, and 4K lenses alongside PTRZ functionality and a 2MP 40x pan-tilt-zoom (PTZ). It delivers comprehensive 360° surveillance coverage with the ability to zoom in on specific events using SmartZoom or through manual operator adjustments. The quad-sensors offer remote configurability for installation, enabling complete lifecycle control over pan, tilt, rotation, zoom, and focus settings.

Camera
Night Vision Distance656.17 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160
Number of Sensors4

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature-40°F
Operating Humidity0-95% RH(non-condensing)

Exposure
Longest Shutter Speed2 Second
Minimum Illumination0.01 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberPNM-C34404RQPZ
Product ModelPNM-C34404RQPZ
Product Name4K x 4 AI IR PTRZ 2MP 40x PTZ
Product SeriesP
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.3-5.7 mm
Lens IncludedYes
Maximum Focal Length5.7 mm
Minimum ApertureF1.5-F1.9

Miscellaneous
Features120dB WDR, 15FPS AI ON, 20FPS AI OFF, 2MP at 60FPS PTZ with 40x zoom, 4.25-170mm (Optical 40x) lens, 4-Channels at 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3-5.7mm (FoV H - 109°-56°, V - 55°-31°), Analytics events based on AI engine - Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, H.265, H.264, MJPEG triple codec, IR viewable [4CH] length 20m (65ft)/[PTZ] WiseIR 200m (656ft), PTZ Auto Tracking, SmartZoom to Preset/IVA Trigger, WiseNR ? (using AI engine), WiseStream? (Based on AI engine)
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)17.42 lb

Product Information
Diameter14.95"
Mount TypePendant Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 109°-56°, V: 55°-31°, D: 136°-65°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.6
Maximum Frame Rate60 fps
Minimum Focal Length3.3 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom1.7x

Warranty
Limited Warranty5 Year
