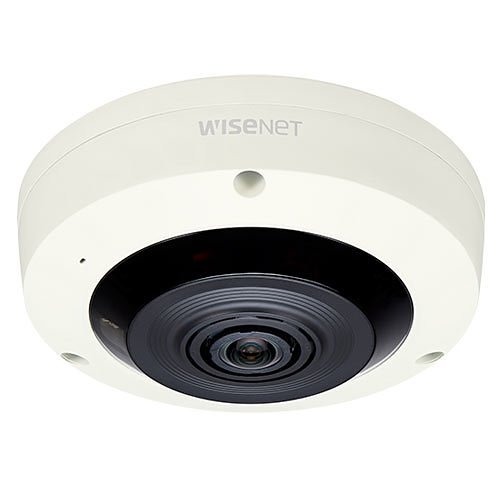

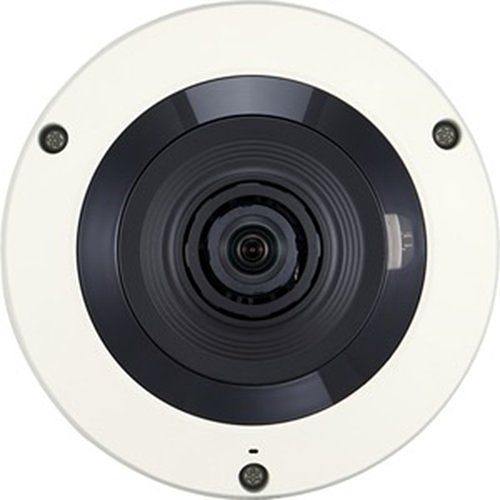

Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory

Brand: Hanwha Vision

Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory

Name: Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory
Brand: Hanwha Vision
SKU: XNF-8010R
Availability: InStock

in stock

In Stock

$535.84

- High-definition surveillance with 2048 x 2048 resolution at 30 frames per second.
- Wide-angle fisheye lens of 1.6mm offering a panoramic 192° x 192° view with easy focus adjustment.
- Integrated infrared capability for clear night vision up to 49 feet or 15 meters.
- Supports Triple Codec: H.265, H.264, and MJPEG for versatile multi-streaming options.
- Utilizes WiseStream II for advanced video compression efficiency.
- Wide Dynamic Range (WDR) of 120dB maintaining quality at 30 fps in varied lighting conditions.
- Intelligent analytics include loitering, directional, fog, and tampering detection, as well as motion and object tracking.
- Features sound classification, heatmap analysis, people counting, and queue management functionalities.
- Equipped with dual SD card slots for expanded local storage.
- Powered through Power over Ethernet (PoE) or 12VDC options.

SKU: XNF-8010R Categories: IP Cameras, Panoramic Cameras, Video Surveillance Brand: Hanwha Vision

Description

The Wisenet X, equipped with the innovative Wisenet 5 chipset, delivers superior performance through its network indoor fisheye camera. Featuring a high-resolution 6 MP CMOS sensor with a 2048×2048 pixel output at 30fps, this device includes Wide Dynamic Range (WDR), capable of reaching up to 120dB, to effectively manage varying light conditions. Its 1.6mm fixed lens provides an expansive 192° field of view. Supporting H.265, H.264, and MJPEG formats, the camera also incorporates WiseStream II compression technology for efficient data handling. Users benefit from true WDR functionality, a USB port for straightforward installation, and sophisticated video/audio analytics, along with business analytics capabilities. Installation and setup are made simpler with features such as simple focus, dual SD card slots, Highlight Compensation (HLC), defog detection, Digital Image Stabilization (DIS), and options for 12VDC or PoE power supply.

Camera
Night Vision Distance	49.21 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66
NDAA Compliant	Yes

Display & Graphics
Color Supported	Color
Maximum Video Resolution	1600 x 1200

Environmental Conditions
Maximum Operating Temperature	131°F (55°C)
Minimum Operating Temperature	14°F (-10°C)
Operating Humidity	90%

Exposure
Longest Shutter Speed	2 Second
Shortest Shutter Speed	1/12000 Second

General Information
Brand Name	Hanwha Vision
Manufacturer	Hanwha Group
Manufacturer Part Number	XNF-8010R
Product Model	XNF-8010R
Product Name	X Series 6 MP sensor 360° Indoor Fisheye
Product Series	X
Product Type	Network Camera

Interfaces/Ports
Network (RJ-45)	Yes

Lens
Focal Length	1.6 mm
Lens Included	Yes
Maximum Focal Length	1.6 mm

Miscellaneous
Features	Back Light Compensation (BLC), Built-in IR LED, Day/Night, Highlight Compensation (HLC), SD Card Local Storage
Indoor/Outdoor	Indoor

Network & Communication
Remote Management	Yes

Physical Characteristics
Color	White
Color Family	White
Durability	Dustproof, Vandal Resistant, Waterproof
Form Factor	Fisheye
Height	2.2"
Product Color	Ivory
Weight (Approximate)	1.61 lb

Power Description
Input Voltage	12V DC

Product Information
Diameter	5.7"
Mount Type	Ceiling Mount, Wall Mount

Storage
Storage Type	Memory Card

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	6MP
Field of View	H : 192 ? / V : 192 ? / D : 19
HD Recording	Yes
Lens Type	Fixed
Maximum Aperture	f/1.6
Maximum Frame Rate	30 fps
Minimum Focal Length	1.6 mm
Night Vision	Yes
Night Vision Type	Infrared
