Description

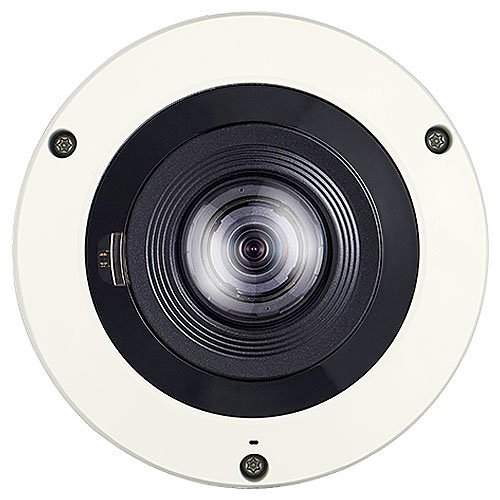

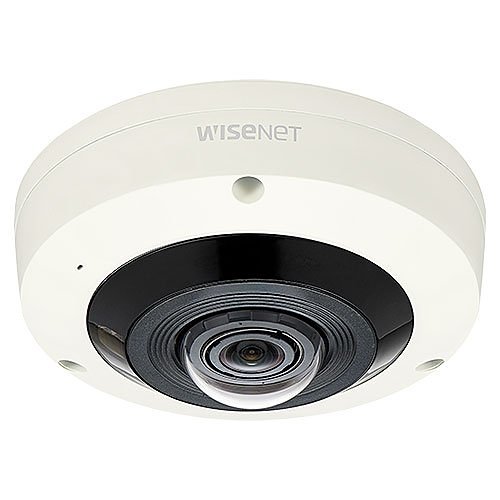

Experience comprehensive 360° surveillance of your property, both day and night, with the WiseNet X Series XNF-8010RVM 6MP Outdoor Network Dome Camera from Hanwha Techwin. Featuring a 6MP 1/1.8″ CMOS sensor and a 1.6mm fisheye lens, this innovative security camera delivers high-resolution imagery of up to 2048 x 2048 at 30 frames per second, covering an expansive 192 x 192° field of view. Designed for diverse lighting environments, the camera includes an automatic IR cut filter and integrated IR LEDs, providing night vision capabilities with a 49-foot range. Enhanced imaging features, such as wide dynamic range and automatic white balance, ensure optimal image capture regardless of lighting conditions. The camera is equipped with an M12 connector for added flexibility in security installations.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNF-8010RVM
Product ModelXNF-8010RVM
Product NameX Series 6 MP sensor 360° Mobile Fisheye
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.6 mm
Lens IncludedYes
Maximum Focal Length1.6 mm

Miscellaneous
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Built-in IR LED, Day/Night, Defog, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorFisheye
Height2.6"
Product ColorIvory
Weight (Approximate)1.74 lb

Power Description
Input Voltage12V DC

Product Information
Diameter5.7"
Mount TypeCeiling Mount, Gooseneck Mount, Pendant Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewH: 192° / V: 192° / D: 192°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length1.6 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
