Description

**12MP Sensor for 360° Surveillance**
**Enables both wall and ceiling installation options**

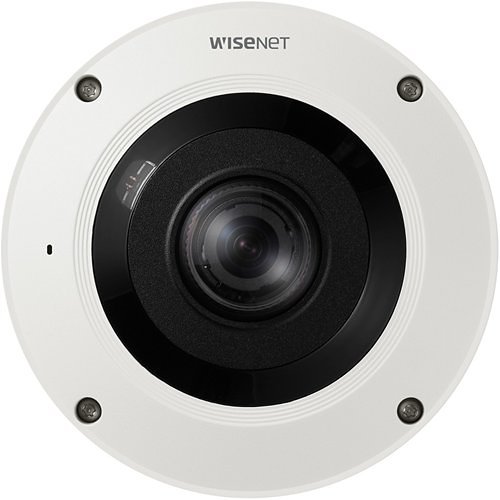

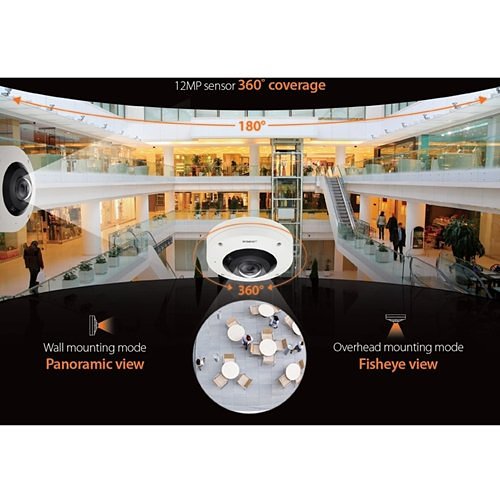

The Wisenet Fisheye camera is equipped with a 12MP sensor, delivering sharp and vibrant images with comprehensive 360° coverage. It offers flexibility in installation, allowing users to choose between wall or ceiling mounting, tailored to the installation environment for detailed area monitoring.

**Improved Peripheral Region Clarity**

Incorporating a Stereo Graphic Type lens, the Wisenet Fisheye camera enhances the resolution of peripheral regions when installed overhead, providing a superior top-down viewing experience. The Wise IR technology optimizes infrared light levels in both central and peripheral image areas based on the installation setting, ensuring consistent image clarity without blurring. Additionally, the camera supports 30fps WDR, ensuring clear images free of motion artifacts.

Camera
Night Vision Distance32.81 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNF-9010RV
Product ModelXNF-9010RV
Product Name12MP IR Fisheye Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.08 mm
Lens IncludedYes
Maximum Focal Length1.08 mm

Miscellaneous
FeaturesBack Light Compensation (BLC), Built-in HLC, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-PNF9010R, SQ-PNF9010RV
Model Number ReplacesPNF-9010R, PNF-9010RV

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFisheye
Product ColorWhite
Weight (Approximate)2.43 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.3"
Mount TypeWall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of ViewH: 187° / V: 187° / D: 187°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.2
Maximum Frame Rate30 fps
Minimum Focal Length1.08 mm
Night VisionYes
Night Vision TypeInfrared
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Years
