Description

**12MP Sensor for Comprehensive 360° Surveillance**
**Offers Versatile Wall and Ceiling Mounting Options**

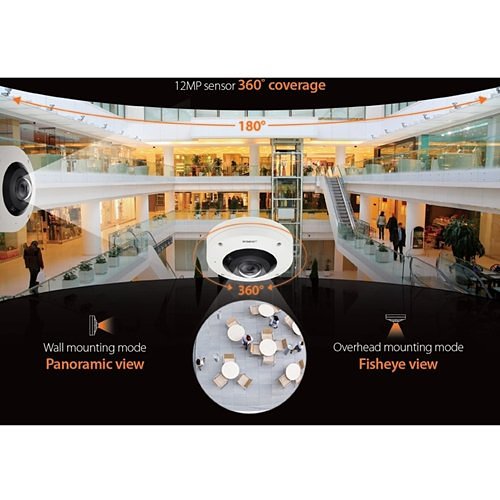

The Wisenet Fisheye Camera integrates a 12MP sensor, delivering crisp and vibrant images with full 360-degree surveillance capabilities. Installers can select between wall mount and ceiling mount configurations to fit various installation requirements, ensuring detailed area coverage.

**Improved Peripheral Resolution**

Utilizing a Stereo Graphic Type lens, the Wisenet Fisheye Camera enhances resolution in the peripheral regions when ceiling-mounted, providing an optimal top-down perspective.

Equipped with Wise IR technology, which adjusts the infrared light levels in both central and peripheral image regions based on the environment, the camera consistently delivers stable images free from smudging. Moreover, it supports 30fps Wide Dynamic Range (WDR) to produce sharp images without motion artifacts.

Camera
Night Vision Distance32.81 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNF-9010RVM
Product ModelXNF-9010RVM
Product Name12MP IR Fisheye Camera - For Mobile Use
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length1.08 mm
Lens IncludedYes
Maximum Focal Length1.08 mm

Miscellaneous
FeaturesAlarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in Card Reader, Built-in HLC, Built-in Microphone, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFisheye
Product ColorSignal White
Weight (Approximate)2.43 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.3"
Mount TypeWall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution12MP
Field of ViewH: 187° / V: 187° / D: 187°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.2
Maximum Frame Rate30 fps
Minimum Focal Length1.08 mm
Night VisionYes
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS
