Description

– HDTV 1080p resolution with 40x optical zoom
– Advanced Lightfinder technology
– Autotracking and orientation aid capabilities
– Integrated video analytics
– FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)

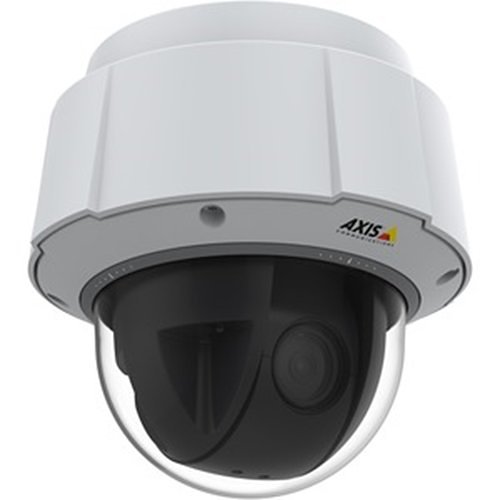

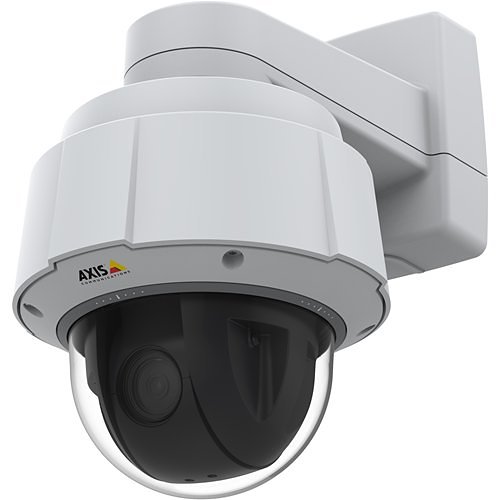

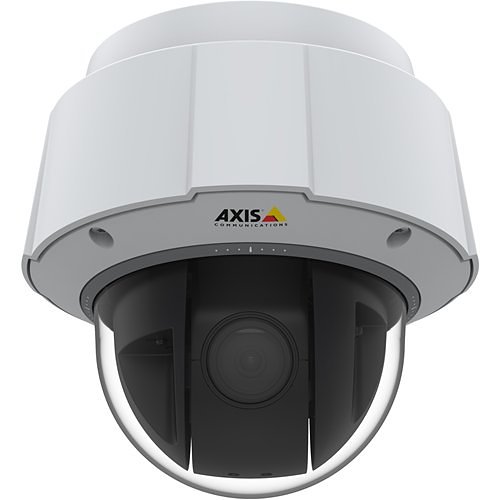

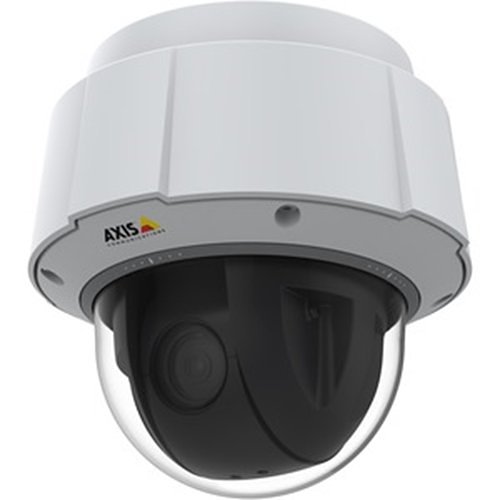

This robust PTZ camera delivers high performance and exceptional light sensitivity, providing clear, sharp video in challenging lighting conditions. It’s perfect for mission-critical surveillance in expansive outdoor environments like urban areas, industrial sites, and critical infrastructure. Incorporating the latest generation chipset, the camera boasts enhanced cybersecurity measures, including signed firmware and secure boot processes.

**Exceptional Detail in Challenging Lighting**

This PTZ camera offers HDTV 1080p video quality and 40x optical zoom for capturing intricate details. It features cutting-edge Lightfinder technology for low-light imaging, producing more vibrant colors and sharper images of moving objects. The camera also uses Zipstream technology with H.264 and H.265 support to maintain critical forensic details while reducing bandwidth and storage needs significantly.

**Versatile Outdoor Use**

Designed for outdoor deployment, this PTZ camera is equipped with IP66/67, NEMA 4X, and IK10 ratings, ensuring protection against dust, rain, snow, and impacts. It includes Arctic temperature control, enabling startups from extreme cold conditions and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Features like Autotracking with click and track, along with an orientation aid, facilitate active object tracking and easy orientation. The integrated analytics suite detects motion, intrusion, and loitering. For privacy concerns, the camera offers privacy masking with mosaic to obscure entire areas, such as adjacent properties.

**Enhanced Security**

Equipped with advanced security features, this high-performance camera protects against unauthorized access and ensures system integrity. The signed firmware prevents unauthorized installations and confirms integrity, while secure boot ensures the camera is malware-free after a factory reset. The included FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) provides secure storage for cryptographic keys and certificates, even in the event of a security breach.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/3 Second
Minimum Illumination0.002 lux
Shortest Shutter Speed1/11000 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number01752-004
Product LineQ
Product ModelQ6075-E
Product NameQ6075-E PTZ Network Camera
Product SeriesQ60
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.25-170 mm
Lens IncludedYes
Maximum Focal Length170 mm

Miscellaneous
FeaturesAuto Tracking, Back Light Compensation (BLC), Day/Night, Defog, Enter/Exit Detector, HTTPS Encryption, Password Protection, PTZ, SD Card Local Storage
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package ContentsQ6075-E PTZ Network Camera Axis High PoE 60 W SFP Midspan 1-Port RJ45 Push-Pull Connector (IP66) Sunshield Installation Guide Windows Decoder 1-User License

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces5D-910004
Model Number Replaces0910-004

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height10.6"
Product ColorWhite
Weight (Approximate)8.27 lb
Width9.1"

Product Information
Diameter9.1"
Mount TypeCeiling Mount, Corner Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal: 65.1°-2.00 ° Vertical: 39.1°-1.18°
HD RecordingYes
Lens TypeVarifocal
Maximum Frame Rate60 fps
Minimum Focal Length4.25 mm
Optical Zoom40x

Warranty
Limited Warranty3 Year
