Description

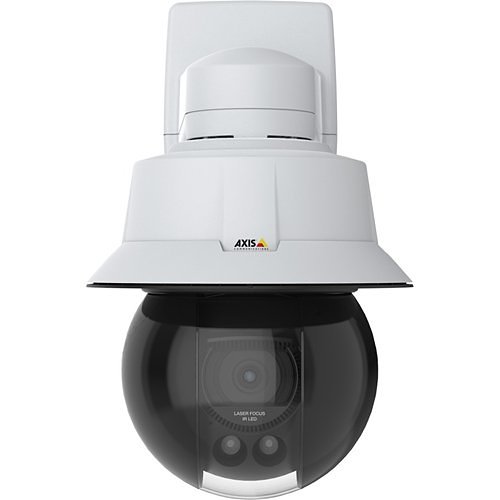

Optimized for urban surveillance, the AXIS Q6315-LE security camera integrates a ½” sensor with 31x optical zoom for detailed monitoring. Its laser focus ensures precise targeting even in low-light conditions, and the Speed Dry feature guarantees clear imaging during rainy weather.

Exceptional Surveillance Around the Clock

Designed with a highly sensitive ½” sensor, the AXIS Q6315-LE delivers sharp, vibrant images and excels at capturing details in varied lighting situations. Equipped with IR Illumination and D/N functionality, this camera excels in complete darkness without external lighting. The 31x optical zoom, combined with built-in laser technology and rapid zoom capabilities, allows for efficient tracking of fast-moving subjects. It also enables integration with AXIS Q6100-E for seamless 360-degree rotation, enhancing situational awareness. Sharing the same bracket, power supply, and network cable with AXIS Q6100, it ensures cost-efficient deployment. Additionally, Zipstream technology with H.264 and H.265 support reduces bandwidth and storage demands without sacrificing image fidelity.

Advanced Analytics for Enhanced Monitoring

This premium surveillance camera incorporates robust analytics for behavioral detection and identification. It features autotracking 2 with click-and-track capabilities for dynamic object monitoring, and orientation aids with real-time overlays of street names and compass symbols for swift navigation. Privacy masking options, including mosaic pixelation for entire areas, and chameleon masking to adapt to background colors, address privacy concerns effectively.

Security and Durability Assured

The AXIS Q6315-LE is equipped with a Trusted Platform Module (TPM) certified to FIPS 140-2 level 2 standards, ensuring secure management of cryptographic keys and certifications. This IK10-rated, vandal-resistant camera is built to withstand dust and powerful water jets, complying with IP66 standards. Features such as shock detection trigger alerts upon impact, and support for fiber connectivity and Power over Ethernet (PoE) facilitates cost-effective installation and extended connections.

Camera
Night Vision Distance984.25 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/111000 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number01925-004
Product LineQ
Product ModelQ6315-LE
Product NameQ6315-LE PTZ Network Camera
Product SeriesQ63
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length214.64 mm
Lens IncludedYes
Maximum Focal Length214.64 mm
Minimum Aperturef/4.6

Miscellaneous
FeaturesAuto Tracking, Automatic Defog, Automatic White Balance, Built-in IR LED, Cross Line Detection, Day/Night, Electronic Image Stabilization, HTTPS Encryption, Human Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package ContentsAXIS Q6315-LE PTZ Network Camera Installation Guide Windows Decoder 1-user License 60 W Midspan (Including Power Cable) IP66 Rated Network Connector Repaint Template Paint Paper

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01925018, Z4-0934004
Model Number Replaces01925-018Q6155-E, 0934-004

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height10.3"
Product ColorWhite
Weight (Approximate)10.60 lb

Power Description
Input Voltage100V AC, 240V AC

Product Information
Diameter7.6"
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 60.6°- 2.0° - Vertical field of view: 36.5°- 1.1°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.36
Maximum Frame Rate60 fps
Minimum Focal Length6.91 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom31x

Warranty
Limited Warranty5 Year
