Description

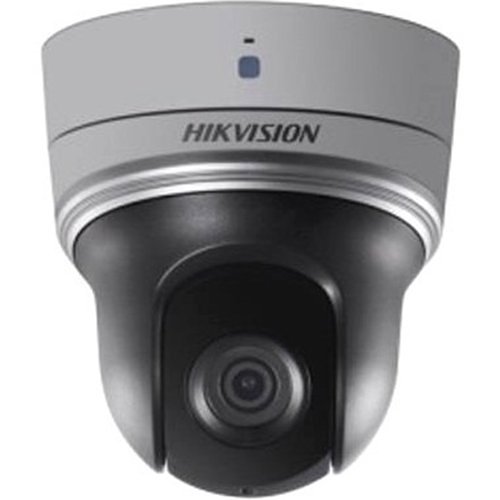

This IR Mini PTZ Camera offers streamlined installation, adjustment, and maintenance, making it an ideal choice for indoor environments such as cafes, hotels, office lobbies, and small retail spaces. The DS-2DE2204IW model is equipped with essential security features, including a 4x optical zoom, Hik-Connect compatibility, and power options through PoE or 12VDC. Its 1/2.8″ progressive scan CMOS sensor enables DWDR and delivers a 2.0MP real-time resolution. Enhanced with pan/tilt capabilities, a Day/Night IR cut filter, and integrated IR lights, this camera provides detailed surveillance in indoor settings.

This Mini PTZ Camera from Hikvision also incorporates a suite of advanced security functionalities, such as intrusion detection, line crossing detection, audio exception detection, motion detection, and video tampering detection. These features significantly boost security effectiveness, ensuring that critical events and objects are captured for comprehensive forensic analysis.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/10000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2DE2204IW-DE3
Product ModelDS-2DE2204IW-DE3
Product NameDS-2DE2204IW-DE3 2.0 MP Network IR Mini PTZ Camera
Product SeriesDE
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm
Minimum Aperturef/1.8

Miscellaneous
FeaturesBack Light Compensation (BLC), Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Form FactorDome
Height5.4"
Weight (Approximate)1.40 lb

Power Description
Input Voltage12V DC, 36V DC, 57V DC

Product Information
Diameter4.9"
Mount TypeWall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 94.5° to 38° (Wide-Tele) Vertical field of view: 52° to 21.5° (Wide-Tele) Diagonal field of view: 110° to 44° (Wide-Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.5
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom4x
