Description

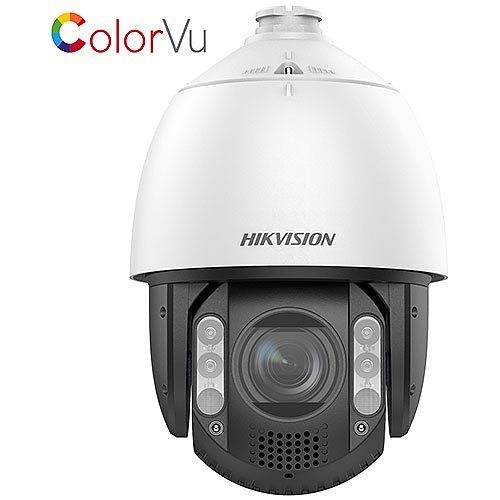

The Hikvision DS-2DE7A220MCG-EB 2 MP 20× Network Speed Dome, featuring a 1/1.8″ progressive scan CMOS sensor, excels in delivering detailed imaging across vast areas with its 20× optical zoom lens. This camera series is optimal for high-definition surveillance in diverse environments such as rivers, roads, railways, airports, public squares, parks, scenic locations, and event venues. Leveraging advanced deep learning algorithms, Hikvision’s AcuSense technology enhances human and vehicle target classification for both front- and back-end systems, significantly boosting the precision and efficiency of alarm responses.

– Provides 24/7 vibrant imaging with top-notch 2 MP resolution.
– Equipped with an audio-visual alarm system: triggers a white flashing light and audible alerts in response to specific events.
– Offers both 20× optical zoom and 16× digital zoom for detailed views across extensive areas.
– Delivers superior night visibility with up to 150 m IR range and 100 m of white light coverage.
– Specializes in human and vehicle target classification using cutting-edge deep learning technology.
– Capable of capturing up to 5 faces simultaneously for effective face recognition.

Camera
Night Vision Distance492.13 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F (65°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2DE7A220MCG-EB
Product ModelDS-2DE7A220MCG-EB
Product Name2 MP 20 × Network Speed Dome
Product SeriesPro
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6.7-134 mm
Lens IncludedYes
Maximum Focal Length134 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
FeaturesAlarm Triggering, Day/Night, Face Detection, Human Detection, Privacy Masking, PTZ, Region of Interest, Removable IR Cut-off Filter, Vehicle Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Weight (Approximate)12.13 lb

Power Description
Input Voltage24V AC

Product Information
Diameter8.7"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 53° to 4.9° (wide-tele), Vertical field of view: 31.3° to 2.7° (wide-tele), Diagonal field of view: 59.6° to 5.6° (wide-tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.2
Maximum Frame Rate25 fps
Minimum Focal Length6.7 mm
Night VisionYes
Night Vision TypeInfrared/Color
Optical Zoom20x

Warranty
Limited Warranty36 Month
