$2,141.99

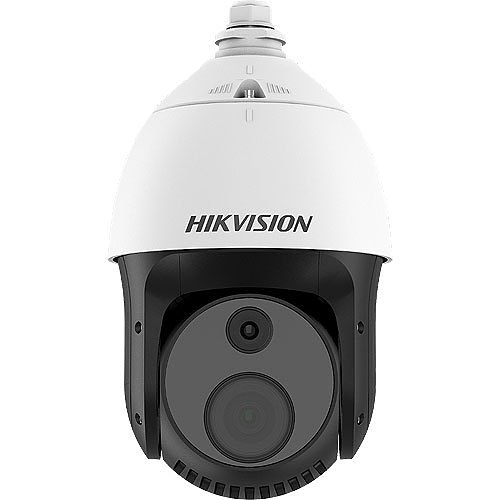

The Hikvision DS-2TD4228T-10/W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome is utilized for monitoring manufacturing processes involving pyrophoric materials in industrial facilities, electrical substations, and hydropower plants. Its precise temperature measurement capabilities provide timely alerts to help safeguard against property damage.
| Camera | |
| Night Vision Distance | 328.08 ft |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66 |
| TAA Compliant | No |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 2688 x 1520 |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Environmental Conditions | |
| Maximum Operating Temperature | 149°F (65°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 95% |
| Exposure | |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| General Information | |
| Brand Name | Hikvision |
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD4228T-10/W |
| Product Model | DS-2TD4228T-10/W |
| Product Name | Thermographic Thermal & Optical Bi-spectrum Network Speed Dome |
| Product Series | PT |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 10 mm |
| Lens Included | Yes |
| Maximum Focal Length | 153 mm |
| Maximum Thermal Focal Length | 0.39" |
| Minimum Aperture | f/4.4 |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Cross Line Detection, HTTPS Encryption, Password Protection, PTZ, SD Card Local Storage, Surge Protection, Wide Dynamic Range |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Dustproof, Waterproof |
| Form Factor | Dome |
| Product Color | White |
| Weight (Approximate) | 8.60 lb |
| Power Description | |
| Input Voltage | 24V AC, 48V DC |
| Product Information | |
| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Field of View | 18° × 13.5° (H × V)/58.4 33.8 (H V) to 2.14 1.2 (H V) |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 4.8 mm |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Optical Zoom | 32x |
| Video | |
| Thermal Video Resolution | 256 x 192 |
