Description

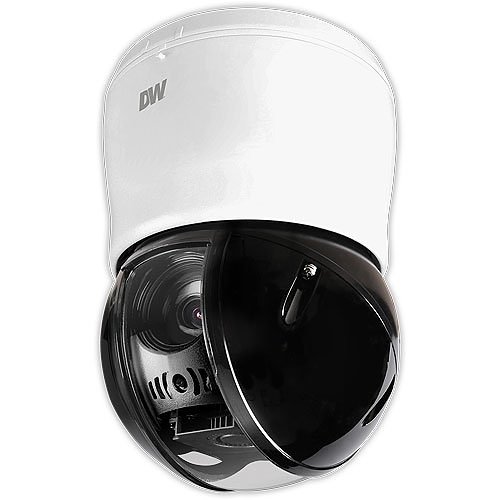

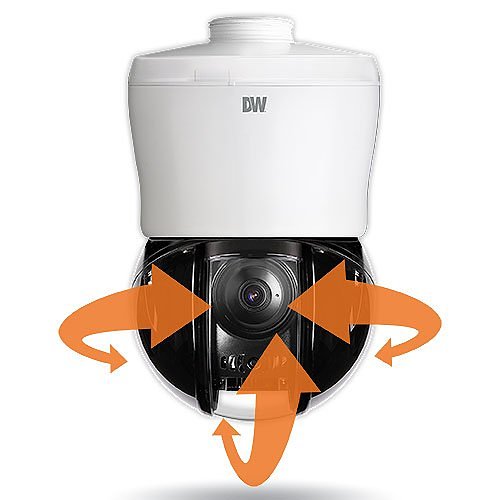

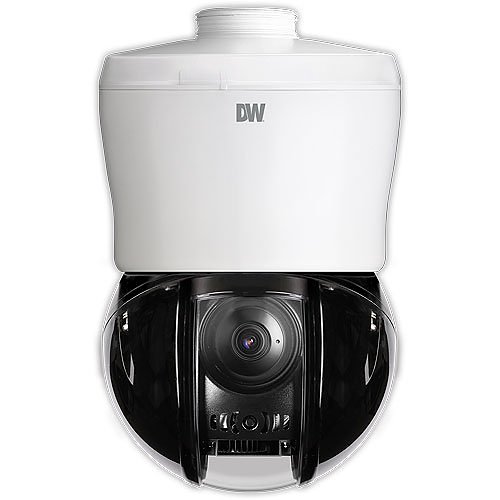

This MEGApix® 30x PTZ security camera is NDAA-compliant and delivers exceptional 2.1MP/1080p resolution at real-time 30fps, making it ideal for professional surveillance applications. Featuring a powerful 30x optical zoom, Star-Light Plus™ technology for color imaging in near-total darkness, true Wide Dynamic Range (WDR), and Smart IR™ for superior video quality in diverse lighting conditions, this camera ensures reliable performance. With support for simultaneous H.265/H.264/MJPEG compression formats, the device offers flexible integration options. The IP66 and IK10-rated vandal-proof PTZ housing provides robust protection, and for complete installation, a wall mount, ceiling mount, or flush mount is required, which are available separately.

Camera
Night Vision Distance200 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/8 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPTZ230XTW
Product LineMEGApix PTZ
Product ModelDWC-MPTZ230XTW
Product Name2.1MP/1080p PTZ IP camera with 30x optical zoom
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.3-129 mm
Lens IncludedYes
Maximum Focal Length129 mm
Minimum Aperturef/4.7

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Motion Detection, PTZ, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Package Contents 2.1MP/1080p PTZ IP camera with 30x optical zoom POE Injector

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Waterproof
Form FactorDome
Weight (Approximate)6.17 lb

Power Description
Input Voltage24V AC, 24V DC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Flush Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View65.1°~2.34°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length4.3 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom30x

Video
Analog Video Signal FormatCVBS
