Description

**Top-Tier IP Surveillance Performance**

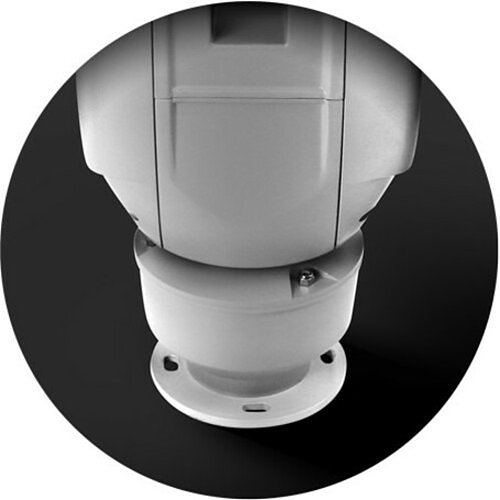

The iconic EspritĀ® Series positioning system offers best-in-class image quality and PTZ functionality for IP surveillance cameras. Esprit Enhanced is the complete solution, boasting superior image quality, advanced software capabilities, and reliable pan/tilt performance suitable for various installation environments.

**Advanced Full HD SureVision 3.0 Cameras**
Offering Full HD 1080p resolution with a 30x optical zoom, the latest evolution of the Esprit series introduces the powerful SureVision 3.0 camera, featuring 130dB True Wide Dynamic Range and low-light performance up to twenty times better than previous models. Available in standard or pressurized 30x optical zoom modules, these cameras deliver market-leading image quality, even in challenging outdoor conditions. With its integrated illuminator, the camera guarantees exceptional image clarity, even under the darkest conditions.

**Image Enhancement Capabilities**
Esprit Enhanced systems pack a wealth of features to maximize the overall value, especially with the addition of the new SureVision 3.0 cameras. These systems include a comprehensive suite of built-in video analytics, 32 window blanking privacy zones, and electronic image stabilization from the outset.

**Standard IP Connectivity and Transmission Options**
Offering versatile connectivity options via two small, form-factor pluggable transceivers (2 SFP ports), which support Fiber, Ethernet over Coax, and UTP Extension. SureVision 3.0 cameras excel with enhanced low-light performance and wide dynamic range. They feature Image Defog, five new White Balance modes, and a Vivid Imaging Mode. The adjustable Image Defog option enhances visibility in foggy or rainy conditions, while new White Balance modes counteract challenging lighting from external sources, like Sodium Vapor lamps. The Vivid Imaging mode enhances color saturation and sharpness when enabled.

**Industry-Leading Performance and Dependability**
Designed with the finest enclosure technology, PTZ mechanics, and receiver capabilities, Esprit Enhanced represents the pinnacle of high-speed surveillance camera systems. Deployed globally for over 16 years, Esprit has consistently evolved to deliver cutting-edge pan/tilt and imaging performance. This camera system is user-friendly, easy to install, and highly dependable.

**Seamless VMS Integration**
Esprit Enhanced integrates effortlessly with a variety of IP and hybrid video management systems. Compatible with platforms like VideoXpert, Endura 2.0 (and later), and Digital Sentry 7.3 (and later), the camera also supports Digital Sentry NVS (DS NVS), a comprehensive video management software available as a free download. DS NVS includes four free IP licenses and can manage video from up to 64 cameras.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-49°F (-45°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/10000 Second

General Information
Brand NamePelco by Motorola Solutions
ManufacturerMotorola Solutions, Inc.
Manufacturer Part NumberES6230-12
Product ModelES6230-12
Product NameEspirit Enhanced ES6230-12-R2 Network Camera
Product SeriesEsprit Enhanced
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.3-129 mm
Lens IncludedYes
Maximum Focal Length129 mm
Minimum Aperturef/1.6

Miscellaneous
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorGray
DurabilityDustproof, Waterproof, Weather Resistant
Form FactorBox Mount
Height20.9"
Weight (Approximate)29 lb
Width7.2"

Product Information
Length13.9"
Mount TypeCorner Mount, Pedestal Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Effective Camera Resolution2MP
Field of ViewHorizontal: 63.7 to 2.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/4.7
Maximum Frame Rate60 fps
Minimum Focal Length4.3 mm
Night VisionYes
Optical Zoom30x
