Description

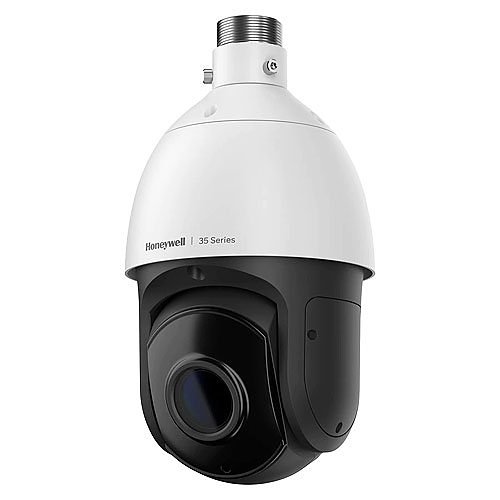

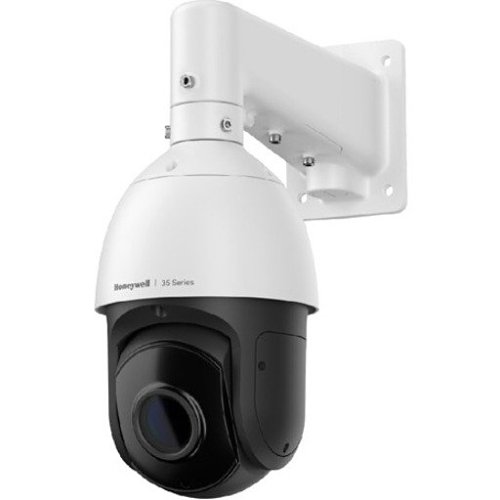

The 35 Series AI IP cameras are engineered to deliver outstanding image clarity, even in low-light environments, featuring high-resolution IR technology for comprehensive area coverage around the clock. These advanced surveillance cameras incorporate intelligent human and vehicle motion detection to minimize false alarms and support both audio and alarm interfaces for seamless local alarm integration. They are designed for versatile system integration, effortless installation, and secure data transmission to enhance regulatory compliance, reduce costs related to installation and operation, and boost productivity and efficiency.

**Features & Benefits:**
– Fully NDAA compliant cameras with no restricted components under the US National Defense Authorization Act (NDAA) Section 889
– Offers resolutions ranging from 2 MP (2592×1944) up to 8 MP (3840×2160)
– Available in various form factors, lenses, and mounting options, including micro dome, rugged dome, bullet, ball, and speed dome (PTZ)
– True day/night functionality provides vibrant color images during the day and clear black-and-white images at night with a removable IR cut filter
– Superior low-light performance with 2D/3D noise reduction technology, conserving storage and bandwidth alongside smart codecs
– True Wide Dynamic Range (WDR) at 120 dB ensures glare-free images
– Compliant with ONVIF Profiles S, G, and T
– Smart IR technology enables even distribution of IR LEDs in low-light or nighttime settings
– Weatherproof and vandal-resistant (IP66/IP67, IK10 – model dependent)
– Stream encryption from camera to NVRs using AES256 for secure data integrity and privacy
– Integrated smart analytics for people counting, intrusion detection, loitering, and smart motion detection to enhance situational awareness
– Remote configuration, motorized zoom adjustments, and auto-focus via web client or NVR
– Multilingual graphical user interface

**Certifications:**
– Compliant with FCC PART 15, CE (EN 55032)
– CE(EN 50130-4)
– UL LISTED TO UL/CSA 62368-1
– CE(EN 62368-1)
– CE(EN 63000)
– UAE(Cabinet Decree No.10 of 2017)

Camera
Night Vision Distance492.13 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature158°F (70°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameHoneywell Commercial Security
ManufacturerHoneywell International, Inc
Manufacturer Part NumberHC35WZ5R30
Product Name35 Series IP Camera
Product Series35
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length5.3-159 mm
Lens IncludedYes
Maximum Focal Length159 mm
Minimum Aperturef/4.3

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Gain Control, Highlight Compensation (HLC), SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyDual Color
DurabilityDust Resistant, Impact Resistant, Waterproof
Form FactorDome
Product ColorPantone Black, Signal White
Weight (Approximate)7.72 lb

Power Description
Input Voltage24V AC

Product Information
Diameter6.8"
Mount TypeCorner Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 56.62° - 2.48°, V: 42.76° - 1.91°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length5.3 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs10
Optical Zoom30x
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
