Description

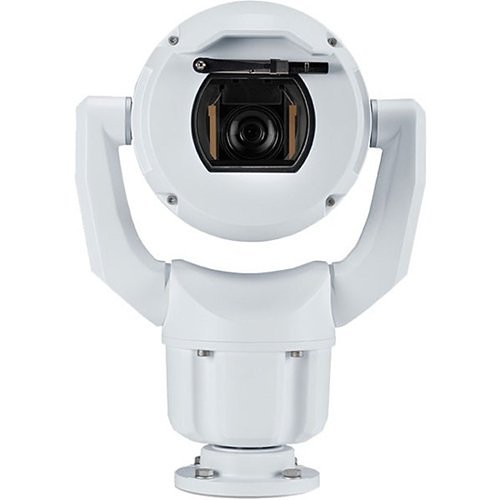

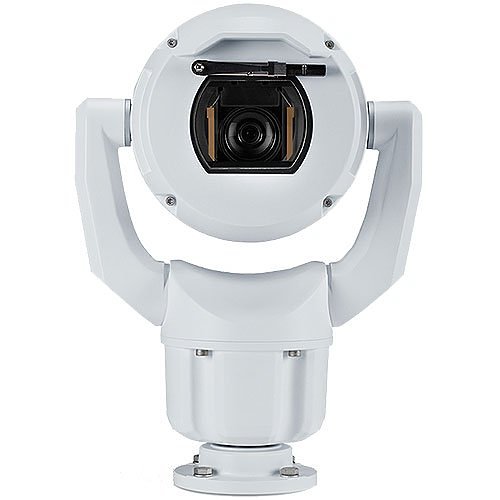

The groundbreaking rugged PTZ camera with ultra-high-definition 4K resolution delivers unparalleled imaging performance and dependability in the most extreme environments. This robust surveillance solution is designed to meet industry expectations in challenging scenarios where traditional IP cameras fall short. Whether installed in conditions of intense shock, vibration, or severe weather, this camera ensures superior video quality. It is the optimal solution for various sectors, including:

– **Transportation:** Suitable for highways, bridges, tunnels, and ports
– **Critical Infrastructure:** Ideal for power generation and transmission, refineries, pipelines, and mining
– **High-Security Environments:** Perfect for government facilities and data centers
– **Mission-Critical Applications:** Designed for use in harsh environments demanding high-resolution imaging
– **Complex Scenes:** Capable of capturing intricate details in any lighting condition
– **Low-Downtime Installations:** Ideal where service interruptions lead to high costs

**Key Features:**

**Durable Construction for Extreme Applications:**
This surveillance camera is crafted for enduring performance beyond the mechanical limits of typical positioning systems. With an anodized metal body engineered to resist high-impact and low-frequency vibrations, it complies with the IK10 impact resistance standard and IEC 60068 vibration and shock standards. The closed-loop positioning system allows the camera to maintain its orientation during continuous vibrations or after extreme shock events, even without calibration. Utilizing contemporary material engineering and coatings, this device offers exceptional corrosion protection through superior metallurgy and finishing. Additionally, it adheres to the ISO 12944:6 C5-M standard for very high (marine) corrosion resistance on aluminum housing components.

**Integrated Defroster on Viewing Window:**
A built-in defroster minimizes or prevents frost accumulation on the camera window. In extremely cold settings, where other cameras might falter due to frosting, this camera provides clearer visibility.

**Robust Design with Leading Industry Ratings (IP68, Type 6P, IK10):**
Subjected to rigorous dust, immersion (IP68, Type 6P), and impact (IK10) tests, these cameras are engineered for the most demanding environments. Each unit features anodized aluminum housing with a durable powder coat paint finish for exceptional corrosion resistance. Reliable O-ring seals provide full protection for internal components without the necessity for pressurization. To ensure integrity, each camera is leak-tested before leaving the factory.

Category Specific Attributes
Thermal Optical Zoom12x

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature149°F
Minimum Operating Temperature-40°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberMIC-7504-Z12WR
Packaged Quantity1
Product LineMIC IP ultra
Product ModelMIC-7504MP-Z12MPWR
Product NameMIC-7504 mP-Z12 mPWR PTZ8 mPMP12 mPx IP68 white
Product Series7100i
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length9 mm - 30 mm - 111 mm - 60 mm
Lens IncludedYes
Maximum Focal Length111|6 mm
Minimum Aperturef/4.5

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Weight (Approximate)306-88 oz
Width11.3"

Power Description
Input Voltage21-30V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Effective Camera Resolution8MP
Field of View6.1° to 64.6° (6.1° to 64.5°)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length9.30 mm
Optical Zoom12x
