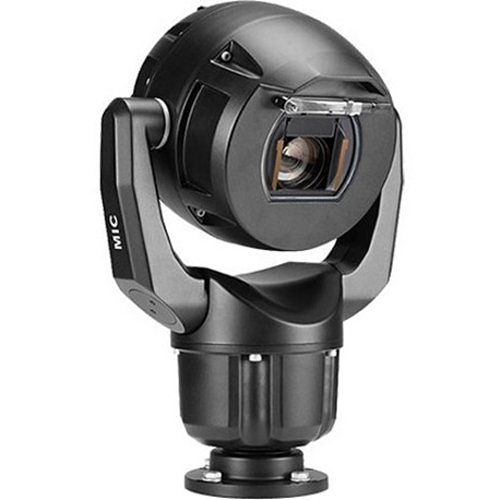

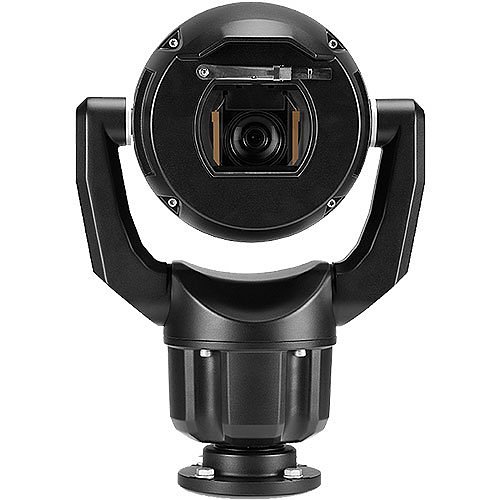

MIC IP Starlight 7100i Camera: A Premier PTZ Surveillance Solution for Mission-Critical Environments

The MIC IP Starlight 7100i camera is a cutting-edge PTZ surveillance system designed for mission-critical environments. Featuring starlight imaging technology and exceptional low-light sensitivity, it delivers superior-quality imaging for robust surveillance demands. Its rugged design makes it an ideal choice for conditions that surpass the capabilities of standard IP surveillance cameras, ensuring high-quality video capture even in harsh shock, vibration, and extreme weather situations.

Applications where this camera excels include:

  • Transportation: such as highways, bridges/tunnels, and ports
  • Critical infrastructure: including power generation/transmission, refineries/pipelines, and mining operations
  • High-security locations: like government facilities and data centers
  • Mission-critical environments demanding high-resolution imaging under harsh conditions
  • Complex scenes marked by intricate details, regardless of lighting conditions
  • Scenarios where minimal downtime is essential due to high service costs

Key Features

Outstanding Low-Light Performance:

Utilizing the latest sensor technology and advanced noise suppression, the camera achieves exceptional color sensitivity in low-light conditions. It continues to deliver excellent color performance even with minimal ambient light.

High Dynamic Range:

The camera’s impressive dynamic range excels in practical performance comparisons. In extended dynamic range mode, it captures four images with varying exposures using an electronic shutter, producing a high-contrast frame. This results in clear visibility of details in both highlights and shadows, allowing for easy identification of features such as faces, even against bright backlighting.

Durable Design for Extreme Environments:

Engineered to withstand the challenges of demanding surveillance applications, the camera features a fully anodized metal body for high-impact, low-frequency vibration resistance. It adheres to the IK10 rating for impact resistance and meets the IEC 60068 standards for vibration and shock. Equipped with a closed-loop positioning system, the camera maintains its position under continuous vibration or after extreme shock events, without the need for homing or pre-position calibration.

Camera
Night Vision Distance1804.46 ft
Wide Dynamic RangeYes

Category Specific Attributes
Thermal Optical Zoom12x

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F
Minimum Operating Temperature-40°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/60000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberMIC-7522-Z30BR
Packaged Quantity1
Product LineMIC IP starlight
Product ModelMIC-7522MP-Z30MPBR
Product NameMIC-7522 mP-Z30 mPBR PTZ2 mPMP HDR30 mPx IP68 Black
Product Series7100i
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6 mm - 60 mm - 198 mm
Lens IncludedYes
Maximum Focal Length198 mm
Minimum Aperturef/4.8

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Product ColorBlack
Weight (Approximate)306-88 oz
Width11.3"

Power Description
Input Voltage21-30V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View2.1° to 58.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate60 fps
Minimum Focal Length6.6 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom30x
