Description

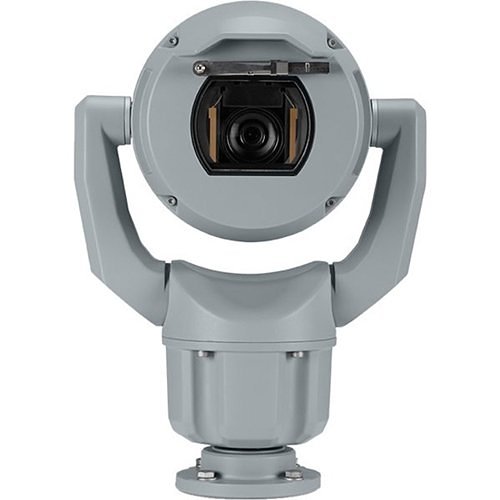

The MIC IP starlight 7100i camera is a cutting-edge PTZ surveillance system, specifically engineered for mission-critical security applications. Utilizing advanced starlight imaging technology and exceptional low-light sensitivity, this camera meets the demands for resilient and high-quality video surveillance solutions. Its rugged design is built to withstand challenging environments that surpass the limitations of standard IP surveillance cameras. Delivering superior video quality even under conditions of intense shock, vibration, or adverse weather, this camera is the ideal choice for:

– Transportation sectors including highways, bridges, tunnels, and ports
– Critical infrastructure such as power generation, transmission facilities, refineries, pipelines, and mining operations
– High-security facilities like government sites and data centers
– Mission-critical scenarios demanding high-resolution imaging in harsh conditions
– Complex scenes requiring detailed observation across various lighting conditions
– Installations where downtime is costly and undesirable

**Key Features**

**Exceptional Low-Light Performance**
Incorporating state-of-the-art sensor technology and advanced noise suppression, the camera offers outstanding color sensitivity, even in minimal ambient lighting.

**High Dynamic Range**
The camera’s exceptional dynamic range is highlighted during real-world applications. In extended dynamic range mode, the camera captures multiple exposures to produce a high-contrast image, enabling clear visibility of details in both highlights and shadows. Users can easily identify features such as facial recognition in brightly backlit scenes.

**Durable Design for Extreme Conditions**
Designed to excel in demanding surveillance environments beyond the mechanical limits of traditional systems, this camera features an entirely anodized metal body engineered to resist high-impact and low-frequency vibrations. The camera models are compliant with the IK10 rating for impact resistance and adhere to IEC 60068 standards for vibration and shock durability. The innovative closed-loop positioning system ensures the camera maintains accurate positioning under constant vibrations or extreme shocks, without the need for homing or pre-position calibration.

Camera
Night Vision Distance1804.46 ft
Wide Dynamic RangeYes

Category Specific Attributes
Thermal Optical Zoom12x

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F
Minimum Operating Temperature-40°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/60000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberMIC-7522-Z30GR
Packaged Quantity1
Product LineMIC IP starlight
Product ModelMIC-7522MP-Z30MPGR
Product NameMIC-7522 mP-Z30 mPWR PTZ2 mPMP HDR30 mPx IP68 white
Product Series7100i
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6 mm - 60 mm - 198 mm
Lens IncludedYes
Maximum Focal Length198 mm
Minimum Aperturef/4.8

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorGray
Color FamilyBlack
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Product ColorBlack
Weight (Approximate)306-88 oz
Width11.3"

Power Description
Input Voltage21-30V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View2.1° to 58.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate60 fps
Minimum Focal Length6.6 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom30x
