Description

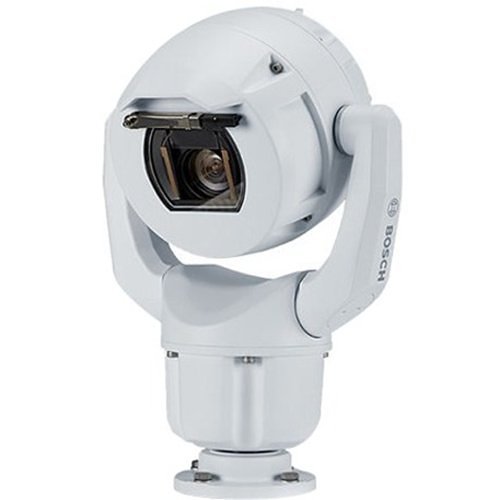

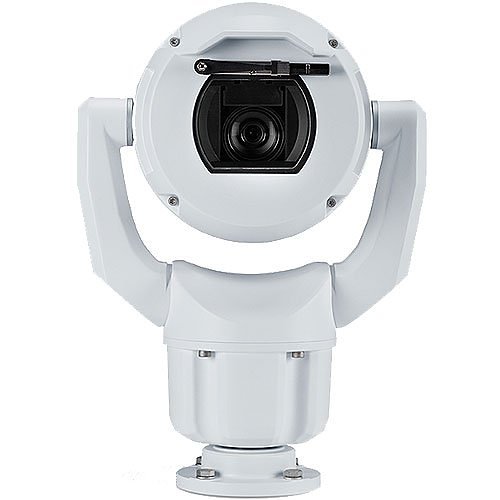

The MIC IP Starlight 7100i Camera is a cutting-edge PTZ surveillance solution designed for mission-critical security applications. Incorporating starlight imaging technology and exceptional low-light sensitivity, it addresses the demands for robust, high-quality image capture. Its ruggedized construction meets industry standards for challenging environments, outperforming conventional IP cameras with superior resilience in harsh conditions such as extreme weather and heavy shock or vibration.

Ideal for various sectors, the camera serves:
– Transportation: highways, bridges, tunnels, and ports
– Critical infrastructure: power generation, transmission, refineries, pipelines, and mining operations
– High-security settings: government facilities and data centers
– Mission-critical environments necessitating high-resolution imaging
– Complex scenes with intricate details in diverse lighting conditions
– Installations where minimizing downtime is crucial due to high service costs

**Key Features**

**Exceptional Low-light Performance**
Equipped with the latest sensor technology and advanced noise suppression, the camera offers remarkable color sensitivity under minimal lighting, consistently delivering superior color performance.

**High Dynamic Range**
Featuring an impressive dynamic range, the camera excels in real-world conditions. In extended dynamic range mode, it uses an electronic shutter to capture multiple exposures, creating high-contrast frames with clear details in both bright and shadowed areas. This feature enables distinct identification of objects and features, even with intense backlighting.

**Ruggedized Design for Extreme Applications**
Engineered for durability in demanding surveillance settings, the entire metal body of the camera is anodized to resist high-impact, low-frequency vibrations. It complies with the IK10 rating for impact resistance and meets IEC 60068 standards for vibration and shock. The closed-loop positioning system ensures the camera maintains its position through constant vibration or after significant shock, eliminating the need for recalibration.

Camera
Night Vision Distance1804.46 ft
Wide Dynamic RangeYes

Category Specific Attributes
Thermal Optical Zoom12x

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F
Minimum Operating Temperature-40°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/60000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberMIC-7522-Z30W
Packaged Quantity1
Product LineMIC IP starlight
Product ModelMIC-7522MP-Z30MPW
Product NameMIC-7522 mP-Z30 mPWR PTZ2 mPMP HDR30 mPx IP68 white
Product Series7100i
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6 mm - 60 mm - 198 mm
Lens IncludedYes
Maximum Focal Length198 mm
Minimum Aperturef/4.8

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Product ColorWhite
Weight (Approximate)306-88 oz
Width11.3"

Power Description
Input Voltage21-30V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View2.1° to 58.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate60 fps
Minimum Focal Length6.6 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom30x
