Description

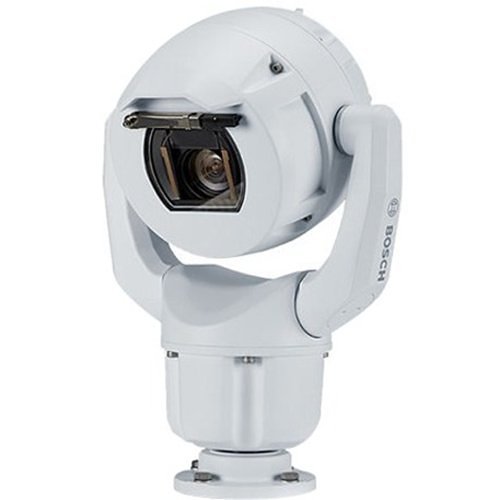

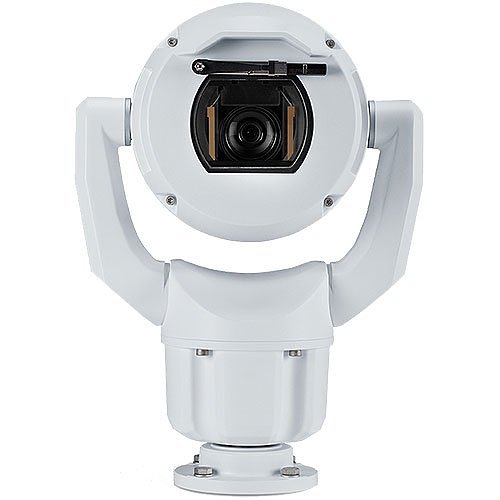

The MIC IP Starlight 7100i Camera is an advanced PTZ surveillance solution engineered for mission-critical security applications. Featuring cutting-edge starlight imaging technology and exceptional low-light sensitivity, this surveillance camera meets demanding industry standards for robust and high-quality imaging. Its ruggedized design is ideal for challenging environments, surpassing traditional IP camera capabilities. It excels in scenarios with harsh shock, vibration, and extreme weather, consistently delivering superior video quality.

**Ideal Applications:**
– Transportation: Highways, bridges, tunnels, and ports
– Critical Infrastructure: Power generation, refineries, pipelines, and mining operations
– High-Security Environments: Government facilities and data centers
– Mission-critical applications in adverse conditions requiring high-resolution imaging
– Complex scenes with intricate details across varied lighting conditions
– Installations where minimizing downtime is critical due to high service costs

**Key Features:**

**Outstanding Low-Light Performance**
Equipped with the latest sensor technology and advanced noise suppression, the camera achieves exceptional color sensitivity, delivering vivid color performance even in minimal ambient light.

**High Dynamic Range**
The camera’s high dynamic range capability is a standout feature in real-world conditions. In extended dynamic range mode, it captures four images at different exposure times to generate a high-contrast frame, enabling detailed visibility in both bright and shadowed areas. This functionality ensures the clear identification of objects and features, such as faces, under backlit conditions.

**Durable Design for Extreme Environments**
Designed to withstand the challenges of rigorous surveillance applications, the camera features an anodized metal body engineered for high-impact and low-frequency vibration resistance. Compliant with IK10 rating for impact resistance and IEC 60068 vibration and shock standards, the camera incorporates a closed-loop positioning system. This system maintains camera positioning through continuous vibration or extreme shock events without requiring homing or pre-position calibration.

This comprehensive PTZ surveillance platform is the optimal choice for professionals in demanding industries seeking reliable and high-quality imaging solutions in extreme conditions.

Camera
Night Vision Distance1804.46 ft
Wide Dynamic RangeYes

Category Specific Attributes
Thermal Optical Zoom12x

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F
Minimum Operating Temperature-40°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/60000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberMIC-7522-Z30WR
Packaged Quantity1
Product LineMIC IP starlight
Product ModelMIC-7522MP-Z30MPWR
Product NameMIC-7522 mP-Z30 mPWR PTZ2 mPMP HDR30 mPx IP68 white
Product Series7100i
Product TypePTZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6 mm - 60 mm - 198 mm
Lens IncludedYes
Maximum Focal Length198 mm
Minimum Aperturef/4.8

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Product ColorWhite
Weight (Approximate)306-88 oz
Width11.3"

Power Description
Input Voltage21-30V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View2.1° to 58.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate60 fps
Minimum Focal Length6.6 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom30x
