Description

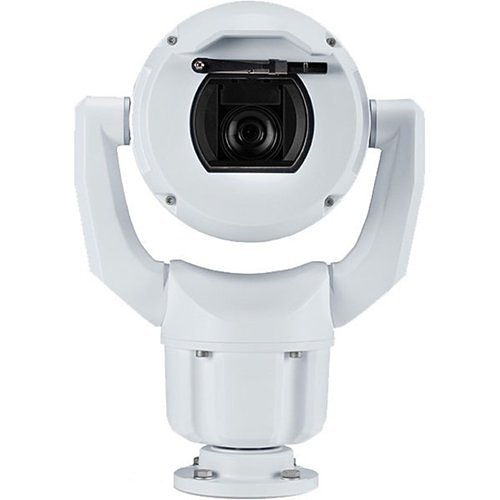

The MIC IP Starlight 7100i Camera is an advanced PTZ surveillance solution designed for mission-critical security applications. Featuring cutting-edge starlight imaging technology and remarkable low-light sensitivity, this camera is ideal for demanding environments where superior image quality is essential. Its ruggedized design meets the expectations of professionals in situations that challenge the limitations of standard IP cameras. From harsh shock and vibration conditions to extreme weather, the camera delivers high-quality video performance consistently.

This surveillance system is optimally suited for:

– **Transportation Security:** Including highways, bridges, tunnels, and ports
– **Critical Infrastructure Protection:** Such as power generation and transmission, refineries, pipelines, and mining
– **High-Security Environments:** Like government facilities and data centers
– **Challenging environments requiring high-resolution surveillance**
– **Complex scenes with detailed observations under variable lighting**
– **Installations where minimizing downtime is crucial due to significant service costs**

**Key Features:**

**Superior Low-Light Performance:** Incorporating the latest sensor technology with advanced noise suppression, the camera excels in color sensitivity under minimal ambient lighting, maintaining exceptional color fidelity.

**Advanced High Dynamic Range:** The camera’s exceptional dynamic range is evident in practical applications, utilizing an electronic shutter to capture multiple exposures for superior contrast. This enables clear visibility of both highlights and shadows, allowing for precise object and feature recognition, even under challenging backlight conditions.

**Durable Design for Extreme Conditions:** Engineered to endure in surveillance settings that surpass the mechanical limits of typical systems, the camera boasts an anodized metal body built to resist high-impact and low-frequency vibrations. It meets the IK10 impact resistance standard and complies with IEC 60068 standards for vibration and shock. Additionally, the closed-loop positioning system ensures the camera maintains its precise orientation under constant vibration or following intense shock events without needing recalibration.

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature149°F (65°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/60000 Second

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberMIC-7602-Z30W
Packaged Quantity1
Product LineMIC
Product ModelMIC-7602-Z30WR-OC
Product NameMIC-7602-Z30WR-OC PTZ 2MP 30x Starlight Enhanced White OC
Product SeriesStarlight
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6.6-198 mm
Lens IncludedYes
Maximum Focal Length198 mm
Minimum Aperturef/4.8

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents1 x MIC-7602-Z30WR-OC PTZ 2MP 30x Starlight Enhanced White OC1 x Spanner Tool1 x Base Gasket1 x RJ45 Coupler1 x MAC Address Labels1 x Quick Installation Guide1 x Safety Instructions

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Depth8.3"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height15.8"
Weight (Approximate)19.18 lb
Width11.3"

Power Description
Input Voltage24V AC

Product Information
Mount TypeConduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Effective Camera Resolution2MP
Field of View2.1° to 58.3°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate60 fps
Minimum Focal Length6.60 mm
Optical Zoom30x
