Description

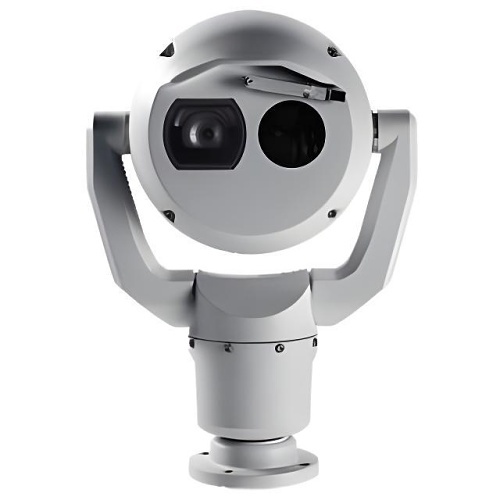

The MIC IP Fusion 9000i camera is an advanced PTZ surveillance solution engineered for critical security applications that demand early threat detection. Its dual visible and thermal imaging technology delivers superior and reliable imaging quality, making it ideal for robust surveillance needs. The camera’s unique, durable design is purpose-built to withstand harsh environments and adverse weather, such as high winds, rain, fog, ice, and snow. With precision engineering rooted in mechanical and material expertise, the camera offers a cutting-edge imaging and positioning system solution available in the security market.

**Features**

**Exceptional Imaging Performance**

The MIC IP Fusion 9000i camera combines a high-performance thermal imaging core with a 1080p starlight camera, housed together to enable simultaneous thermal and visible video streams. This integration enhances the ability to detect and respond to long-distance threats effectively.

**Thermal Imaging**

Equipped with state-of-the-art uncooled vanadium oxide microbolometer technology, the thermal imaging component boasts a fixed focal length athermal lens for an optimal balance between the field of view and detection range. Users can adjust contrast and gain for image optimization, ensuring superior video quality. A variety of thermal color modes are available for further enhancement, and models offer QVGA (320 pixels) and VGA (640 pixels) resolutions with low (<9Hz) or high (30Hz) frame rates.

**Visible Imaging**

The 1080p60 visible imager features starlight technology, paired with a 30x optical/12x digital zoom lens for sharp images, exceptional color fidelity, and unparalleled low-light performance. High dynamic range technology ensures outstanding image clarity in high-contrast scenes.

**Ruggedized Design for Extreme Applications**

The MIC IP Fusion 9000i is crafted for surveillance situations that exceed the mechanical limits of standard PTZ domes and conventional positioning systems.

– **Ingress Protection**

The camera is environmentally sealed to comply with Type 6P and IP68 standards when utilized with a compatible mount, offering robust protection against dust and water ingress. This makes the camera highly suitable for extreme conditions involving rain, dust, snow, flying debris, and other challenging factors. Moreover, its ingress protection system eliminates the need for periodic maintenance, unlike cameras with pressurized housings.

Certifications
Ingress Protection RatingIP66, IP67, IP68

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080
Thermal Image Sensor TypeUncooled Vanadium Oxide Microbolometer

Environmental Conditions
Maximum Operating Temperature149°F (65°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberMIC-9502-Z30GVF9
Product LineMIC IP fusion
Product ModelMIC-9502-Z30GVF9
Product NameMIC-9502-Z30GVF9 PTZ thermal VGA-9mm 2MP 30x 30Hz, gray
Product Series9000i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedYes
Maximum Focal Length129 mm
Maximum Thermal Focal Length0.35"
Minimum Aperturef/4.7

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Built-in Web Server, Day/Night, Defog, Heater, Noise Reduction, PTZ, Removable IR Cut-off Filter, Surge Protection
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents MIC-9502-Z30GVF9 PTZ thermal VGA-9mm 2MP 30x 30Hz, gray 1 x Quick Installation Guide 1 x Base Gasket 1 x RJ45 Coupler 4 x MAC Address Labels 1 x Ground Screw

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorGray, White
Color FamilyGray
Depth7.1"
DurabilityCorrosion Resistant, Dust Resistant, Fog Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Vibration Resistant, Waterproof, Weather Resistant
Form FactorDome
Height16.6"
Product ColorGray
Weight (Approximate)19.84 lb
Width11.7"

Power Description
Input Voltage24V AC, 30V AC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Conduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View70° x 52°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60 fps
Minimum Focal Length4.30 mm
Optical Zoom30x

Video
Thermal Video Resolution640 x 480
