Description

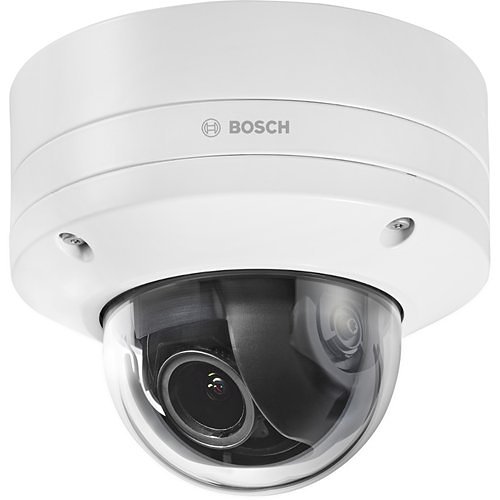

The FLEXIDOME IP starlight 8000i – 4MP X series surveillance camera is equipped with a 1/1.8″ sensor and advanced Starlight X and HDR X technologies, delivering a 4.1MP resolution. This network security camera achieves an optimal balance between high-resolution imaging and exceptional low-light performance, thanks to Starlight X technology, which ensures detailed image capture in challenging conditions. HDR X technology allows it to record video with a broad dynamic range across various lighting environments, eliminating motion artifacts in fast-moving subjects. With frame rates of up to 60 frames per second at 4.1MP resolution, it excels at capturing swift-moving objects with ease.

The camera features an innovative remote commissioning capability, significantly simplifying the installation process. Utilizing a PC or mobile device with the Bosch Project Assistant app, users can pan, tilt, roll, and zoom (PTRZ) to position the camera for optimal coverage with a single click, eliminating the need for manual adjustments or physically touching the device.

**Functions**

**Full Remote Commissioning**
The superior IP video surveillance camera redefines ease of installation. Installers can transition from traditional methods to this streamlined process, saving significant time. With its remote commissioning feature, there’s no need to repeatedly climb ladders. The Bosch Project Assistant app facilitates the remote configuration of the camera’s field of view through PTRZ functionality with just one click. Subsequent configuration and commissioning can be performed remotely using the network via the app, the camera’s web interface, or the Bosch Configuration Manager.

**Fast Performance**
Operating at 60 frames per second, this camera ensures optimal performance in dynamic scenes, capturing critical data without compromising video quality.

**Starlight X – Next Level Starlight Performance**
Starlight X technology leverages cutting-edge, large-pixel sensors, enhanced optics, advanced image processing, and noise suppression to deliver a 70% improvement in sensitivity over standard starlight cameras.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP6K9K
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2688 x 1520

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE-8513-RXT
Product LineFlexiDome
Product ModelNDE-8513-RXT
Product NameFixed dome 4MP HDR X 12-40mm PTRZ IP66
Product Series8000i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length12-40 mm
Lens IncludedYes
Maximum Focal Length40 mm
Minimum Aperturef/2.3

Miscellaneous
Environmental CertificationEU RoHS, EU WEEE, REACH
Environmentally FriendlyYes
FeaturesAuto Tracking, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Package Contents1 x FLEXIDOME IP 8000i Network Camera1 x T-20 Security Torx Bit1 x Quick Installation Guide1 x Safety Information2 x Rubber Grommet for the Ethernet Cableand more below, 1 x 10-pin I/O Connector, 1 x 2-pin Power Connector, 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20), 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25), 1 x Cable Conduit for Side Entry, 1 x Network Patch Cable 50 cm, 1 x Washer for Cable Conduit, 3 x Identification Label

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6.9"
DurabilityDust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Waterproof, Wind Resistant
Form FactorDome
Height5.8"
Product ColorWhite
Weight (Approximate)5.07 lb

Power Description
Input Voltage12V DC, 24V AC, 26V DC

Product Information
Mount TypeBox Mount, Ceiling Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWireless
Effective Camera Resolution4MP
Field of ViewWide: 36.8° x 20.3° (H x V) Tele: 12.8° x 7.3° (H x V)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.3
Maximum Frame Rate60 fps
Minimum Focal Length12 mm
Optical Zoom3.3x
