Description

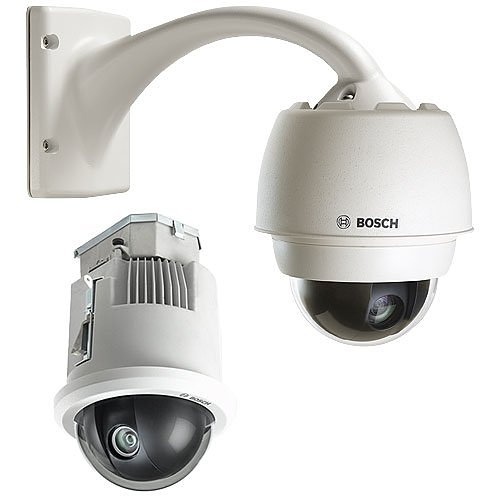

The cutting-edge AUTODOME IP starlight 7000i camera integrates advanced video analytics, starlight imaging technology, and seamless video streaming capabilities. With its sophisticated low-light performance, the camera employs starlight imaging technology and market-leading intelligent video analytics to deliver unparalleled image quality. Even in the most challenging lighting conditions, this 30x PTZ dome camera provides high-definition 1080p video. Designed for easy installation, the camera is offered in both a durable outdoor pendant housing and an indoor in-ceiling housing.

**Features**

**Exceptional Low-Light Performance**
The camera boasts the latest sensor technology paired with advanced noise suppression, resulting in exceptional color sensitivity even in minimal ambient light conditions.

**Intelligent Video Analytics on the Edge**
The camera features built-in video content analysis (VCA), bolstering the “Intelligence-at-the-Edge” concept by enhancing device intelligence. Equipped with Bosch’s state-of-the-art video analytics technology, it effectively detects and analyzes moving objects while minimizing false alarms from irrelevant sources in the frame. This enables detection of idle and removed objects, loitering, multiple line crossings, and trajectory tracking, as well as supporting Bird’s Eye View (BEV) for people counting.

**Dynamic Video Analytics**
Even outside preset positions and during PTZ camera movements, the intelligent video analytics application can detect object presence in predefined alarm fields. Once set, these fields remain consistent across all PTZ views, allowing the camera to automatically trigger an alarm if any field becomes active during a guard tour through monitored areas.

**Camera Trainer**
Leveraging machine learning, the Camera Trainer program allows users to define objects of interest and create detectors for both moving and stationary objects. Unlike the moving object detection of the standard video analytics, the Camera Trainer classifies objects instantly. Configuration Manager facilitates camera trainer setup using both live video and recorded footage available on the camera. These custom detectors can be easily transferred to other devices by downloading and uploading as needed.

Camera
Image Sensor TypeCMOS
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66MP
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity1

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberF.01U.352.676
Packaged Quantity1
Product LineAutoDome IP Starlight
Product ModelNDP-7512MP-Z30MPK
Product NamePTZ2 mPMP HDR30 mPx clear IK10 mPPendant Mount
Product Series7000i
Product TypeCamera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.3-129mm
Lens IncludedYes
Maximum Focal Length129mm
Minimum Aperturef/4.7

Miscellaneous
Country of OriginPT
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Gain Control, Day/Night, Defog, Noise Reduction, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesPB-NDP7512Z3
Model Number ReplacesNDP-7512-Z30

Physical Characteristics
ColorClear
DurabilityCorrosion Resistant, Dustproof, Impact Resistant, Waterproof
Form FactorDome
Height11"-8"
Width8.8"

Power Description
Input Voltage24V AC

Product Information
Diameter8-8"
Mount TypeSurface Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View2.3°-64.7°
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60fps
Minimum Focal Length4.3mm
Night VisionYes
Optical Zoom30x
Video FormatsH.264, H.265, M-JPEG

Warranty
Limited Warranty3 Year
