Description

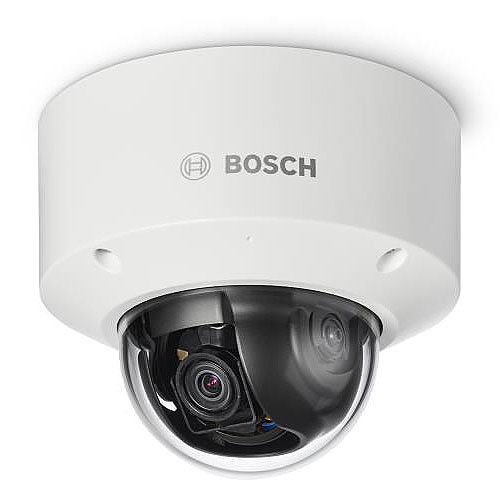

The FLEXIDOME IP indoor 8000i – 2 MP camera series is designed for optimal IP video surveillance, featuring a 1/2.8″ sensor and advanced technologies such as starlight and High Dynamic Range (HDR) at 1080p resolution. This surveillance solution ensures clear and highly detailed footage even in challenging low-light environments.

**Functions: Full Remote Commissioning**

Experience effortless installation with this innovative video surveillance system. The unique remote commissioning capability simplifies setup and reduces installation time significantly. Using a PC or mobile device paired with the Bosch Project Assistant app, professionals can easily pan, tilt, roll, and zoom (PTRZ) to adjust the camera’s field of view, all remotely, eliminating the need for physical interaction with the device.

Remote configuration and commissioning can also be accomplished post-installation. Simply connect to the camera via the network using the Bosch Project Assistant app, the camera’s web interface, or Bosch Configuration Manager.

**Fast Performance**

Equipped with a high-resolution sensor and operating at 30 frames per second, this camera provides an ideal solution for capturing fast-moving objects in high detail while maintaining situational awareness.

**Starlight Performance**

The integration of cutting-edge sensor technology with advanced image processing and noise reduction enhances sensitivity in low light, delivering outstanding color performance even with minimal ambient lighting.

**High Dynamic Range (HDR)**

The HDR mode employs a multi-exposure process to capture greater detail in areas of both highlights and shadows within the same scene. This ensures clear visibility of features, like backlit faces. The camera’s dynamic range is assessed using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5 standards.

**Scene Modes**

The camera offers nine customizable scene modes with pre-configured settings tailored for various application needs. Users can instantly select optimal image settings for different environments, such as traffic monitoring or retail surveillance, ensuring versatile functionality across numerous scenarios.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP54
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-4°F
Operating Humidity93%

Exposure
Longest Shutter Speed1/25 Second
Shortest Shutter Speed1/5000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNDV-8502-R
Product LineFLEXIDOME IP
Product ModelNDV-8502MP-R
Product NameFixed Dome2 mPMP HDR3 mP-9 mPmm PTRZ
Product Series8000i
Product TypeCamera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3-9 mm
Lens IncludedYes
Maximum Focal Length9 mm
Minimum Aperturef/2.3

Miscellaneous
Environmental CertificationChina RoHS, REACH, RoHS, WEEE
Environmentally FriendlyYes
FeaturesAutomatic Defog, Automatic White Balance, Cross Line Detection, Day/Night, Face Detection, Mirror, Motion Detection, Noise Reduction, Privacy Masking, Region of Interest, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor
Package Contents1x FLEXIDOME IP indoor 8000i - 2 MP series camera1x T-20 security torx bit1x Quick installation guide1x Safety information1x Cable conduit for side entryand more below, 1x Adapter plate for cable conduit (Ø 1/2" / M20), 1x Adapter plate for cable conduit (Ø 3/4" / M25), 1x Washer for cable conduit, 3x Identification labels

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6"-97"
DurabilityDust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Splash Resistant, Water Resistant, Wind Resistant
Form FactorDome
Height5"-83"
Product ColorWhite
Weight (Approximate)4-38 lb

Product Information
Diameter7"
Mount TypeSurface Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewWide: 117º x 59º (H x V); Tele: 37º x 21º (H x V)
HD RecordingYes
Lens TypeP-iris
Maximum Aperturef/1.2
Maximum Frame Rate60fps
Minimum Focal Length3 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3x
